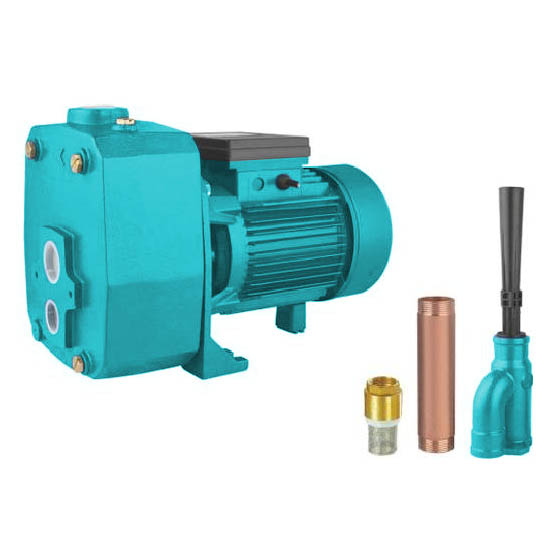

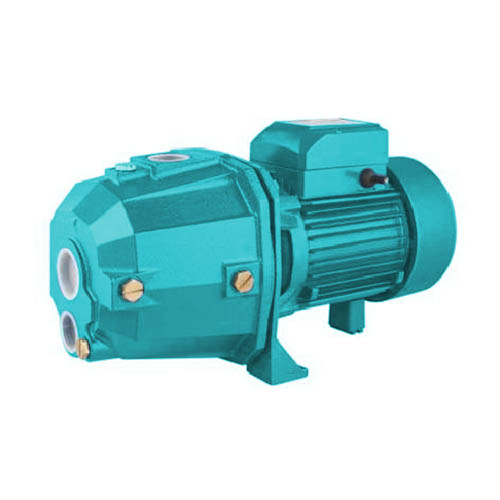

Deep Wells uchun ZEN brendi DP Jet Pump o'zining yuqori ishlashi va ishonchliligi bilan mashhur va mijozlarning sevgisini qozondi.
Vintlarni qo'llashChuqur quduqning o'z-o'zidan ishlaydigan nasoslari erga o'rnatiladi va reaktiv korpuslar suvga botiriladi, bu esa quduqdagi suv sathi o'rnatilgan nasosdagi suv sathidan 35 metr past bo'lsa ham ularning funksionalligini ta'minlaydi. Shuning uchun ular juda ishonchli, tejamkor, ulardan foydalanish oson va maishiy dasturlarda va kichik va o'rta o'lchamdagi boshqaruv tanklarida, bog'larda va hokazolarda avtomatik suv taqsimotida ko'p qo'llaniladi.
Barcha holatlarda assimilyatsiya chuqurligi yuqoridagi er nasosining normal quvvatidan oshadi.
Nasos qismlariga kimyoviy jihatdan agressiv bo'lmagan toza suv va suyuqliklarni pompalash uchun ishlatiladi.
Nasoslar yopiq muhitda o'rnatilishi yoki hech bo'lmaganda yomon ob-havodan himoyalangan bo'lishi kerak.
• 60°C gacha suyuqlik harorati
• Atrof-muhit harorati 40°C gacha
• Nasosi korpusi: quyma temir
• Nasosi braketi: quyma temir
• Dvigatel korpusi: alyuminiy
• Pervanel: guruch
• Diffuzor: Noryl
• Dvigatel o'qi: karbonli po'lat, AlS1304 SS (agar kerak bo'lsa)
• Mexanik muhr: SIC / grafit
• Bipolyar induksion vosita (n = 2850 rpm)
• Izolyatsiya sinfi B
• Himoya IP44
• Uzluksiz xizmat Sl
• Bir fazali termal himoya
• Bir fazali 220 V / 50 Gts, 60 Gts (agar kerak bo'lsa)
• Uch fazali 380V / 50Hz, 60Hz (kerak bo'lsa)
| Model | DP195 | DP255 | DP370 | DP505 | DP750 |
| Quvvat (kVt) | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 |
| Quvvat (HP) | 0.5 | 0.75 | 1.0 | 1.5 | 2.0 |
| Injektor turi | E20 E30 | E20 E30 | E20 E30 | E20 E30 | E20 E30 |
| So'rish chuqurligi nasos |
10 15 20 30 | 10 15 20 30 | 10 15 20 40 | 10 15 20 35 40 50 | 10 15 20 35 40 50 |
| 10 | 2000 1300 600 400 | 3000 2000 1000 600 | |||
| 20 | 1300 800 500 300 | 3000 1200 800 400 | 2500 1500 1100 900 | 4000 3300 2000 1300 1100 900 | 4500 3500 2300 1600 1300 1200 |
| 30 | 500 200 300 100 | 700 300 400 200 | 1000 800 1000 800 | 3000 2100 1800 1200 1000 800 | 3500 2400 2100 1500 1300 1100 |
| 40 | 500 200 700 200 | 2000 1600 1600 1100 900 700 | 2500 1900 1900 1400 1200 1000 | ||
| 50 | 1700 1500 1100 900 500 400 | 2000 1800 1400 1200 800 700 |
| DP - chuqur quduqlar uchun inyeksiya pompasi | ||||||
| Model | DP195 | DP255 | DP370 | DP505 | DP750 | |
| Quvvat (kVt) | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 | |
| Quvvat (HP) | 0.5 | 0.75 | 1.0 | 1.5 | 2.0 | |
| Maksimal oqim (L/min) | 28 | 28 | 28 | 30 | 30 | |
| Maksimal bosh (m) | 50 | 60 | 80 | 100 | 120 | |
| Maksimal diapazon (m) | 25 | 25 | 25 | 35 | 45 | |
| GW(kg) | 13.2 | 16 | 19 | 32.2 | 34 | |
| Plomba hajmi (mm) | 423×278×230 | 423×288×245 | 423×288×245 | 525×235×295 | 525×235×295 | |
| Miqdori (PCS/20'TEU) | 1115 | 1000 | 1000 | 830 | 830 | |
| DNP | 4” | 4” | 4” | 4" | 4” | |
| DN1 | 1¼” | 1¼” | 1¼” | 1¼” | 1¼” | |
| DN2 | 1" | 1" | 1" | 1" | 1" | |
| DN3 | 1" | 1" | 1" | 1" | 1" | |
| DN4 | 1" | 1" | 1” | 1" | 1” | |
| OF | 97 | 97 | 97 | 97 | 97 | |
|
Meditatsiya (mm) |
a | 91 | 91 | 91 | 55 | 55 |
| a1 | 45 | 45 | 45 | 55 | 55 | |
| a2 | 142 | 142 | 142 | 142 | 142 | |
| f | 375 | 375 | 375 | 384 | 384 | |
| f1 | 5185 | 5185 | 5185 | 455 | 455 | |
| h | 193 | 193 | 193 | 255 | 255 | |
| h1 | 94 | 94 | 94 | 221 | 221 | |
| i | 177 | 177 | 177 | 255 | 255 | |
| n | 184 | 184 | 184 | 198 | 198 | |
| m | 142 | 142 | 142 | 145 | 145 | |
| w | 100 | 100 | 100 | 120 | 120 | |
| s | 10 | 10 | 10 | 10 | 10 | |
