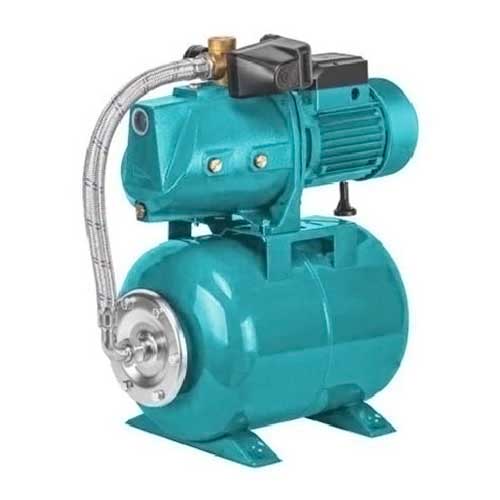

Biz sifat va mijozlar ehtiyojini qondirish majburiyatimiz bilan faxrlanamiz va JSW ZEN Brand Pump Station keng qamrovli kafolatlar va mijozlarga alohida yordam beradi.
MateriallarNasos korpusi: quyma temir
Nasosi braketi: quyma temir
· Dvigatel korpusi: alyuminiy
Pervanel: guruch
Diffuzor: Noryl
Dvigatel o'qi: karbonli po'lat, agar kerak bo'lsa, AlSI304 SS
Mexanik muhr: SIC / grafit
● Bipolyar induksion vosita (n = 2850 rpm)
● Izolyatsiya sinfi B
● Himoya IP44
● Uzluksiz xizmat ko'rsatish Sl
● Bir fazali termal sug'urta
● Bir fazali 220V/50Hz, 60Hz (kerak bo'lsa)
● Uch fazali 380V/50Hz, 60Hz (kerak bo'lsa)
| MODEL | KIRISH KUCH | MAX.OQIM (L/min) |
MAX.BOSH (M) |
MAX.SUCT (M) |
QUANTITY (Sozlash) |
|
| kVt | HP | |||||
| JSWM1C-E | 0.37 | 0.5 | 60 | 35 | 9 | 1870 |
| JSWM1B-E | 0.5 | 0.7 | 60 | 41 | 9 | 1870 |
| JSWM10M | 0.75 | 1.0 | 60 | 45 | 9 | 1490 |
| JSWM15M | 1.1 | 1.5 | 90 | 55 | 9 | 1490 |
| JSWM10H | 0.75 | 1.0 | 60 | 56 | 9 | 1490 |
| JSWM15H | 1.1 | 1.5 | 60 | 72 | 9 | 1490 |
| JSWM3CH | 1.1 | 1.5 | 80 | 64 | 9 | 800 |
| JSWM3BH | 1.5 | 2 | 100 | 76 | 9 | 800 |
| JSWM3CM | 1.1 | 1.5 | 140 | 52 | 9 | 800 |
| JSWM3BM | 1.5 | 2 | 140 | 60 | 9 | 800 |
| JSWM3CL | 1.1 | 1.5 | 180 | 42 | 9 | 800 |
| JSWM3BL | 1.5 | 2 | 180 | 51 | 9 | 800 |
| JSWM15M+24L | 1.1 | 1.5 | 90 | 55 | 9 | 300 |
Ishlash grafigi n = 2850 RPM
| Model | Chiqishga kiring | N.V | LxWxH | |
| (dyuym) | (Kg) | (mm) | ||
| JSWM1C-E | 1"×1" | 9.5 | 395×186×214 | |
| JSWM1B-E | 1"×1" | 10.5 | 395×186×214 | |
| JSWM10M | 1"×1" | 15 | 438×196×235 | |
| JSWM15M | 1"×1" | 15.5 | 438×196×235 | |
| JSWM10H | 1"×1" | 15 | 438×196×235 | |
| JSWM15H | 1"×1" | 15.5 | 438×196×235 | |
| JSWM3CH | 1¼"×1" | 24 | 573×238×270 | |
| JSWM3BH | 1¼"×1" | 25 | 573×238×270 | |
| JSWM3CM | 1¼"×1" | 24 | 573×238×270 | |
| JSWM3BM | 1¼"×1" | 25 | 573×238×270 | |
| JSWM3CL | 1¼"×1" | 24 | 573×238×270 | |
| JSWM3BL | 1¼"×1" | 25 | 573×238×270 | |
| JSWM15M+24L | 1"×1" | 24.5 | 535×305×598 | |
| Raqamlar | Eslatmalar | Raqamlar | Eslatmalar | Raqamlar | Eslatmalar |
| 1 | Chiqaruvchi vilka | 13 | G'ildirak | 25 | mahkamlash paneli |
| 2 | "O" halqasi | 14 | "O" halqasi | 26 | Vida |
| 3 | Yuklash vilkasi | 15 | mexanik dengiz | 27 | Kabel pressi |
| 4 | asbob vilkasi | 16 | Nasosi braketi | 28 | Fairlea shahrida |
| 5 | Oʻzgartirish | 17 | Mandal | 29 | mahkamlash paneli |
| 6 | Nasos korpusi | 18 | Yaralangan statorli korpus | 30 | Kondensator |
| 7 | "O" halqasi | 19 | Stansiya | 31 | Yiqilishdan himoya qilish |
| 8 | Ventura trubkasi | 20 | Uchuvchi shlyapasi | 32 | Aloqa |
| 9 | "O" halqasi | 21 | Mandal | 33 | Kalit |
| 10 | Diffuzor | 22 | Muxlis | 34 | Rotor |
| 11 | Yong'oq | 23 | Fan qopqog'i | 35 | Aloqa |
| 12 | Bahor yuvish mashinasi | 24 | Mandal | 36 | Ochiq uzuk |
