Mahsulot tavsifi

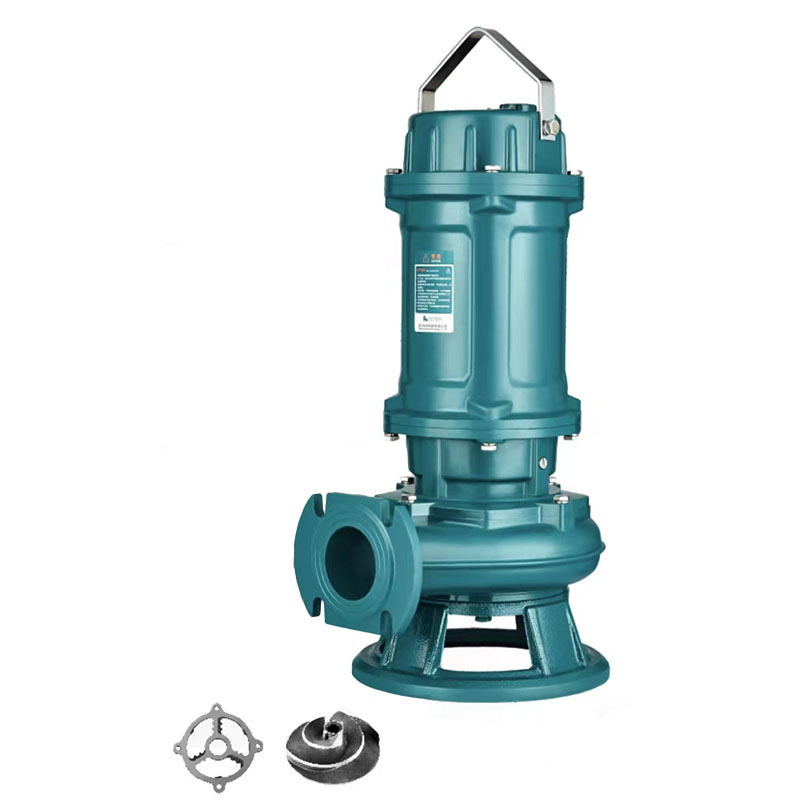

WQAS maydalagich quyma temir kanalizatsiya nasosi

Mahsulot xususiyatlari

	Epoksi qatronli kabel asosi Epoksi qatron simi yadrosi namlikning yadro chizig'i orqali dvigatelga kirishiga to'sqinlik qilishi mumkin.
	Yuqori sifatli nozik quyma temir 3 kVt dan boshlab, 3 ta og'ir rulmanlardan foydalaning Sovuq po'latdan 800 # elektrostator
	Termal himoyani avtomatik ravishda kesish Avtomatik termal himoyachini o'chirish Dvigatel g'ayritabiiy va haddan tashqari ishlaganda avtomatik issiqlik himoyasi o'chiriladi va quvvatni avtomatik ravishda o'chiradi.
	Mexanik muhr Ikkita mexanik muhr ketma-ket ikkita muhrdan iborat. Silikon karbiddan tayyorlangan yuqori aşınmaya bardoshli mexanik muhr eng yaxshi muhrlanish effektini ta'minlaydi.

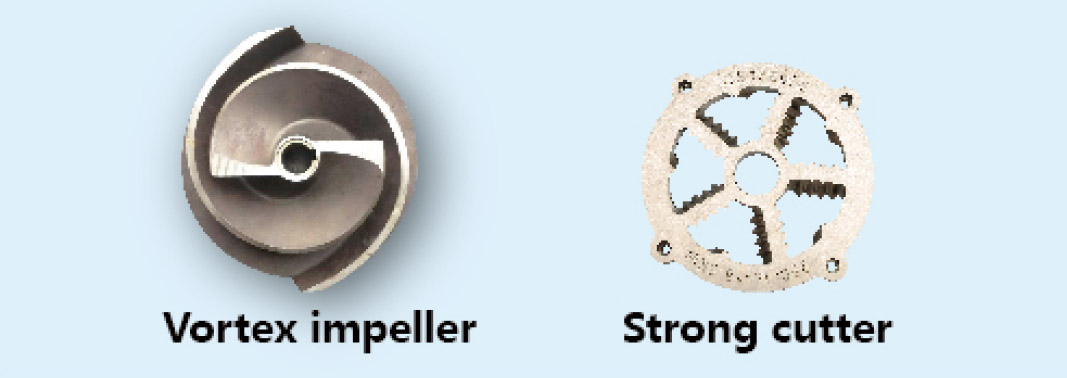

kesish rishtasi bilan kesish mashinasi pervanesi

1. Pervanel tiqilib qolmasdan ishlab chiqilgan, strukturasi oqilona

2. Pervanel va pichoq halqasining materiali 420 yuqori xromli zanglamaydigan po'latdir, qattiqligi HRC49 - 52, yaxshi aşınma qarshilikka ega.

To'qqiz foyda

1. 100% yuqori sifatli mis elektr motorlar.

2. Zanglamaydigan po'latdan yasalgan vintlardek.

3. Zanglamaydigan po'latdan yasalgan to'sarlar / 304 # zanglamaydigan po'lat.

4. Ikki-uch mexanik muhrni loyihalash.

5. Slicon po'lat stator.

6. Yuqori sifatli HT200/250 uchun quyma temir.

7. Sovuq po'lat # 600 - 800, uzoqroq xizmat qilish muddati, past dvigatel harorati.

8. Yuqori sifatli podshipniklar.

9.Barqaror ishlashni ta'minlash uchun to'liq nasos boshi dizayni

Spetsifikatsiya

	Loyihalar	Eslatmalar
Foydalanish bo'yicha cheklovlar	Suyuqlik harorati.	0 ~ 40°C (32 ~ 104°F)
Foydalanish bo'yicha cheklovlar	Ilova	Maishiy/sanoat oqava suvlari
Turi	Chastotasi	50 Gts yoki 60 Gts
	Elektr dvigateli	2P (2900 RPM yoki 3450 RPM)
	Izolyatsiya materiallari	F toifasi
	Himoya	IP68
	Himoyachi	Bir fazali termal himoya o'chirgich (uch fazali nol)
	Rulman	Bilya turi, 2 - 3 og'ir podshipniklar
	Mexanik muhr	Qoʻsh M. muhrlari
	G'ildirak	Bo'ron + to'sar

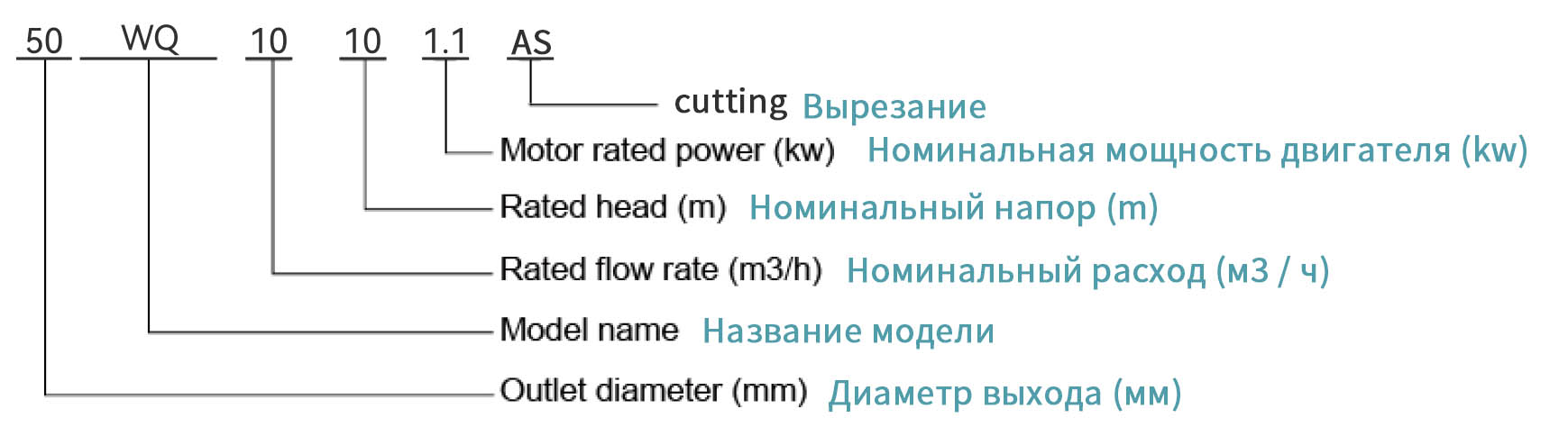

Model

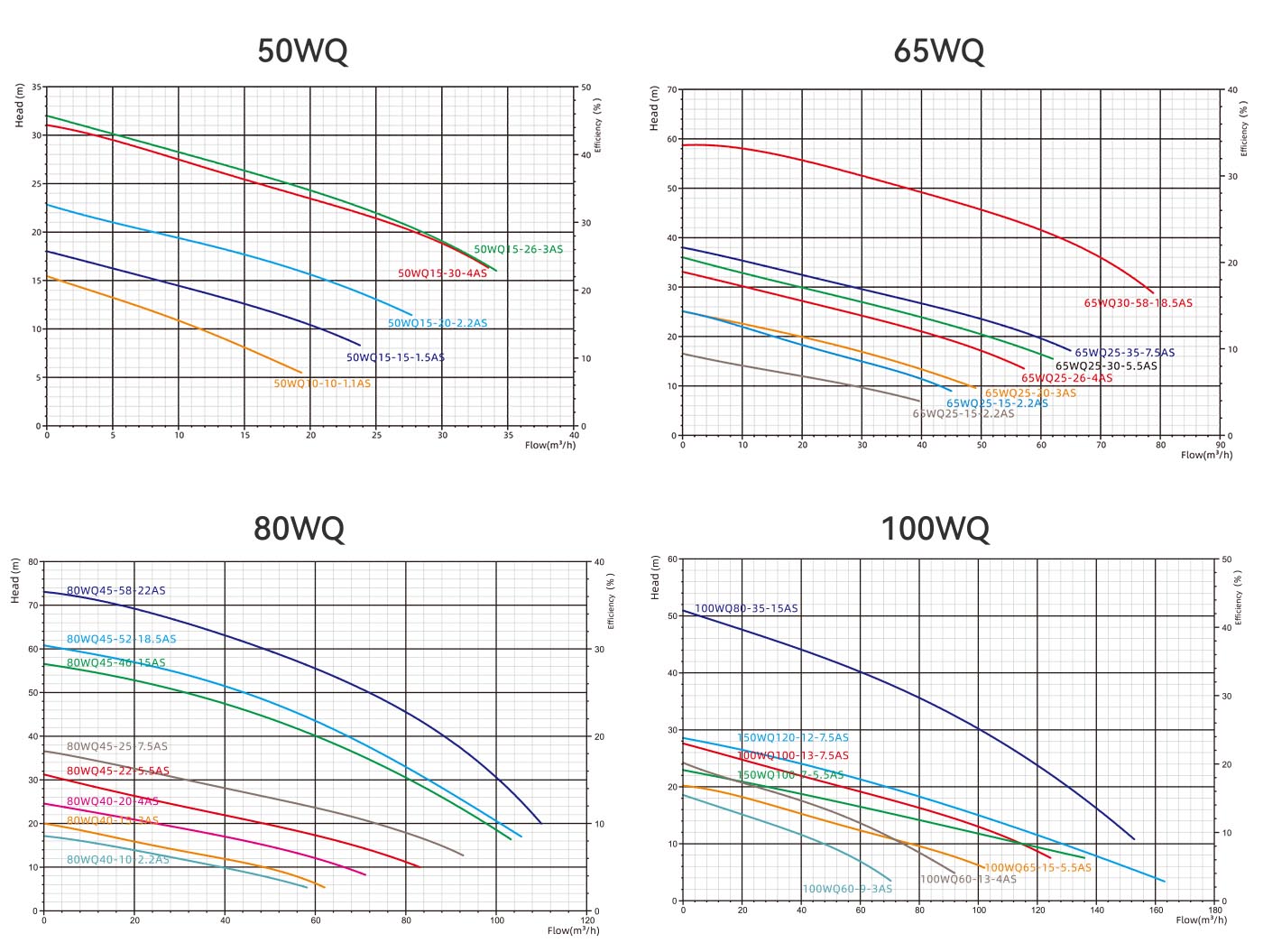

Ishlash egri chizig'i

Model	Elektr		Maksimal bosh	Maksimal oqim	Chegirma
Model	kVt	HP	M	m³/soat	dyuym	mm
50WQ10-10-1.1AS	1.1	1.5	16	20	2"	50
50WQ15-15-1.5AS	1.5	2	19	24	2"	50
50WQ15-20-2.2AS	2.2	3	33	28	2"	50
50WQ15-26-3AS	3	4	32	35	2"	50
50WQ15-30-4AS	4	5.5	31	34	2"	50
65WQ25-10-1.5AS	1.5	2	17	40	2,5"	65
65WQ25-15-2.2AS	2.2	3	23	47	2,5"	65
65WQ25-20-3AS	3	4	26	49	2,5"	65
65WQ25-26-4AS	4	5.5	34	57	2,5"	65
65WQ25-30-5.5AS	5.5	7.5	36	63	2,5"	65
65WQ25-35-7.5AS	7.5	10	39	65	2,5"	65
65WQ30-58-18.5AS	18.5	25	59	80	2,5"	65
80WQ40-10-2.2AS	2.2	3	17	59	3"	80
80WQ40-15-3AS	3	4	21	63	3"	80
80WQ40-20-4AS	4	5.5	25	72	3"	80
80WQ45-22-5.5AS	5.5	7.5	31	82	3"	80
80WQ45-25-7.5AS	7.5	10	37	93	3"	80
80WQ45-46-15AS	15	20	57	104	3"	80
80WQ45-52-18.5AS	18.5	25	61	106	3"	80
80WQ45-58-22AS	22	30	74	110	3"	80
100WQ60-9-3AS	3	4	19	70	4"	100
100WQ60-13-4AS	4	5.5	27	93	4"	100
100WQ65-15-5.5AS	5.5	7.5	21	102	4"	100
100WQ80-35-15AS	15	20	51	153	4"	100
100WQ100-13-7.5AS	7.5	10	28	125	4"	100
150WQ100-7-5.5AS	5.5	7.5	23	136	6"	150
150WQ120-12-7.5AS	7.5	10	29	164	6"	150

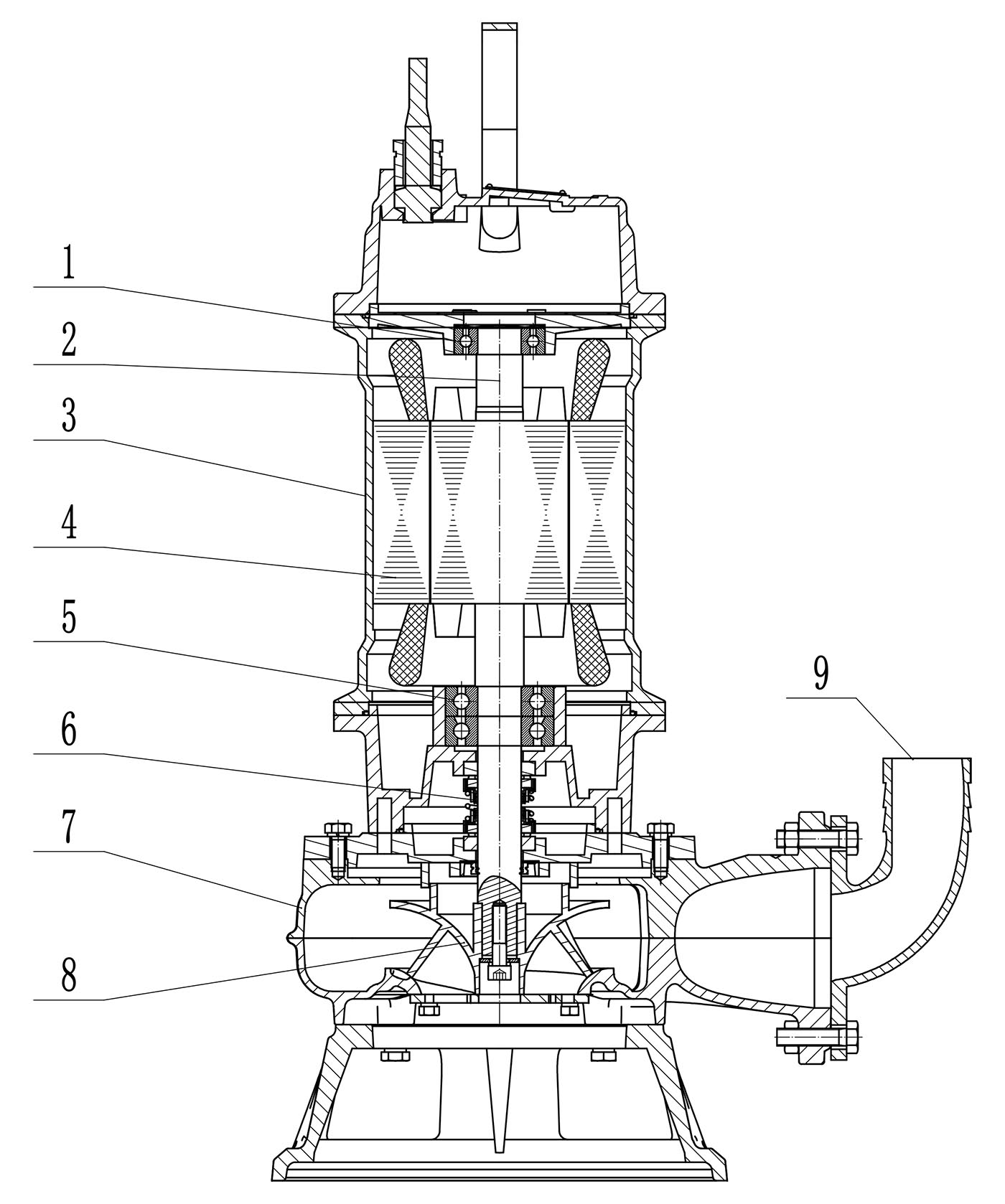

WQAS profili

Yo'q.	Ism
1	Rulman
2	vosita o'qi
3	Dvigatel korpusi
4	Elektr materiallari
5	Rulman
6	Mexanik muhr
6	Yog 'muhr
7	Nasos korpusi
8	G'ildirak + kesish moslamasi
9	Chegirma

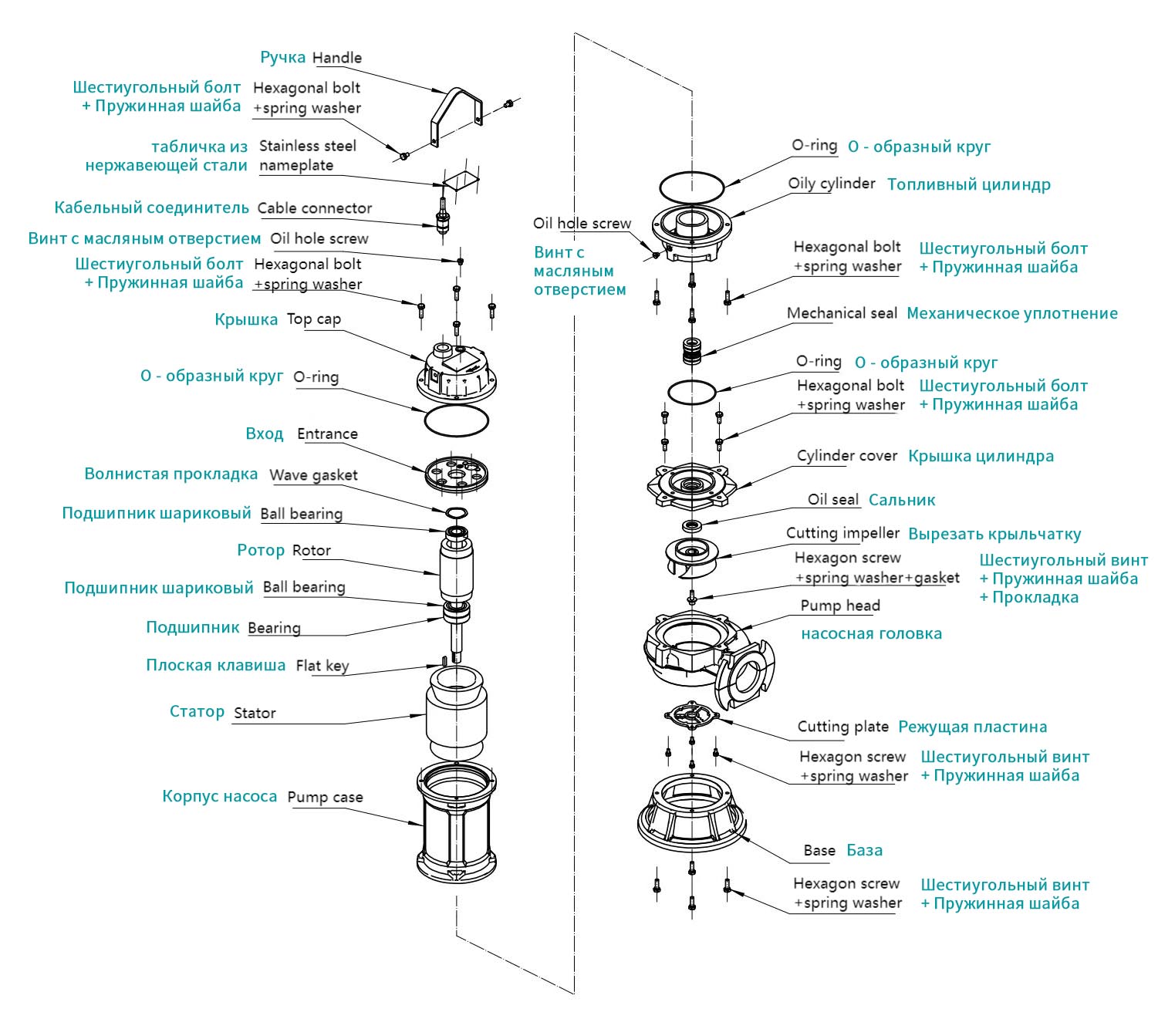

Portlash kartasi

Model.	DN	DN1	L	L1	L2	L3	L4	W	W1	H	H1	H2	H3	H4	M	n-d	P
50WQ10-10-1.1AS	50	51	570	420	155	108	195	205	103	386	251	103	148	257	110	4-14	140
50WQ15-15-1.5AS	50	51	590	440	166	118	239	243	122	413	278	122	156	265	110	4-14	140
50WQ15-20-2.2AS	50	51	610	460	166	118	239	243	122	413	278	122	156	265	110	4-14	140
50WQ15-26-3AS	50	51	650	495	182	132	253	262	131	435	300	131	169	278	110	4-14	140
50WQ15-30-4AS	50	51	690	525	182	132	253	262	131	435	300	131	169	278	110	4-14	140
65WQ25-10-1.5AS	65	64	600	450	176	123	244	243	122	399	286	122	164	245	130	4-14	160
65WQ25-15-2.2AS	65	64	620	460	176	123	244	243	122	399	286	122	164	245	130	4-14	160
65WQ25-20-3AS	65	64	655	500	190	135	256	266	133	429	316	133	183	264	130	4-14	160
65WQ25-26-4AS	65	64	695	530	190	135	256	266	133	429	316	133	183	264	130	4-14	160
65WQ25-30-5.5AS	65	64	740	570	203	147	268	300	150	467	354	150	204	285	130	4-14	160
65WQ25-35-7.5AS	65	64	770	600	203	147	268	300	150	467	354	150	204	285	130	4-14	160
65WQ30-58-18.5AS	65	64	995	757	234	174	298	336	168	495	400	168	232	295	130	4-14	160
80WQ40-10-2.2AS	80	74	630	470	178	125	260	255	133	413	300	122	178	254	150	4-18	190
80WQ40-15-3AS	80	74	665	510	197	139	274	267	137	433	320	131	189	265	150	4-18	190
80WQ40-20-4AS	80	74	705	540	197	139	274	267	137	433	320	131	189	265	150	4-18	190
80WQ45-22-5.5AS	80	74	750	580	211	151	286	300	150	477	364	150	214	290	150	4-18	190
80WQ45-25-7.5AS	80	74	780	610	211	151	286	300	150	477	364	150	214	290	150	4-18	190
80WQ45-46-15AS	80	74	960	722	234	174	313	336	168	508	400	168	232	303	150	4-18	190
80WQ45-52-18.5AS	80	74	995	757	234	174	313	336	168	508	400	168	232	303	150	4-18	190
80WQ45-58-22AS	80	74	1040	802	234	174	313	336	168	508	400	168	232	303	150	4-18	190
100WQ60-9-3AS	100	102	680	525	215	144	302	285	152	491	335	135	200	305	170	4-18	210
100WQ60-13-4AS	100	102	720	555	215	144	302	285	152	491	335	135	200	305	170	4-18	210
100WQ65-15-5.5AS	100	102	765	595	229	160	318	313	163	534	378	150	228	333	170	4-18	210
100WQ80-35-15AS	100	102	975	735	247	181	333	347	180	567	411	168	243	348	170	4-18	210
100WQ100-13-7.5AS	100	102	795	625	229	160	318	313	163	534	378	150	228	333	170	4-18	210
150WQ100-7-5.5AS	150	149	765	595	229	160	374	313	163	585	378	150	228	360	225	8-18	265
150WQ120-12-7.5AS	150	149	795	625	229	160	374	313	163	585	378	150	228	360	225	8-18	265
