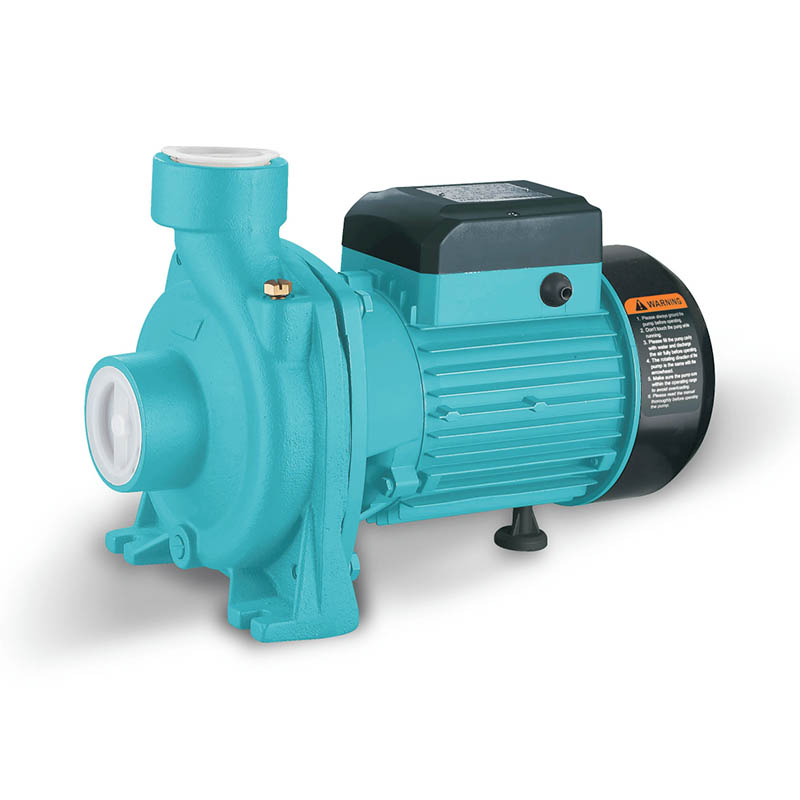

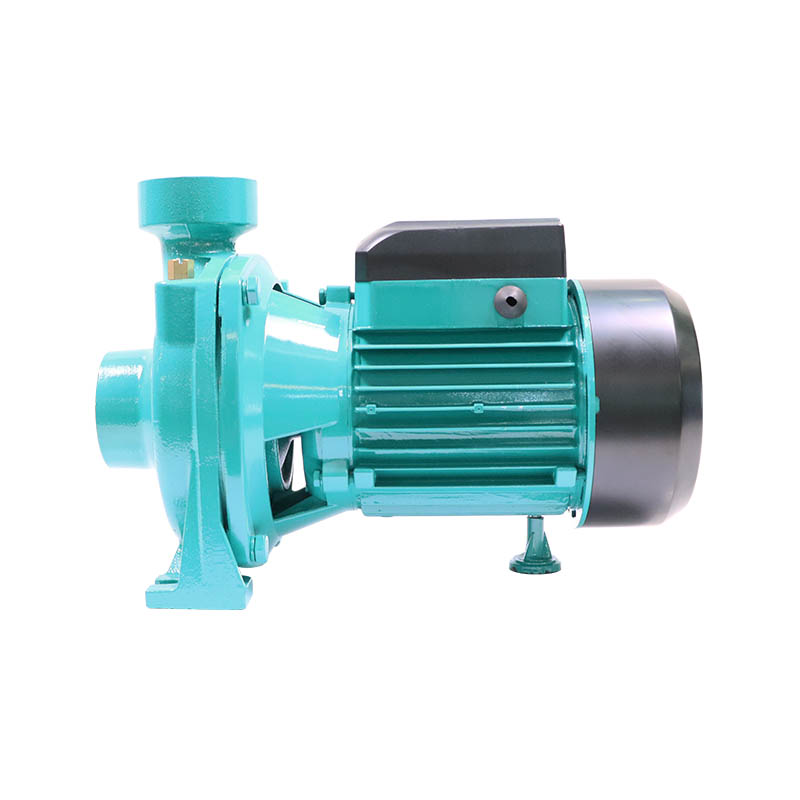

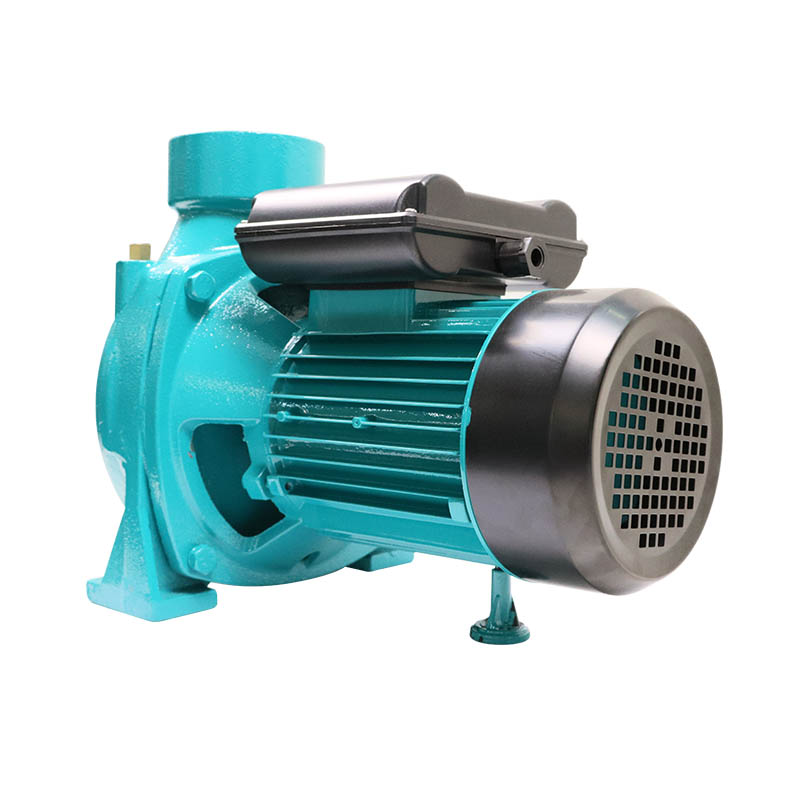

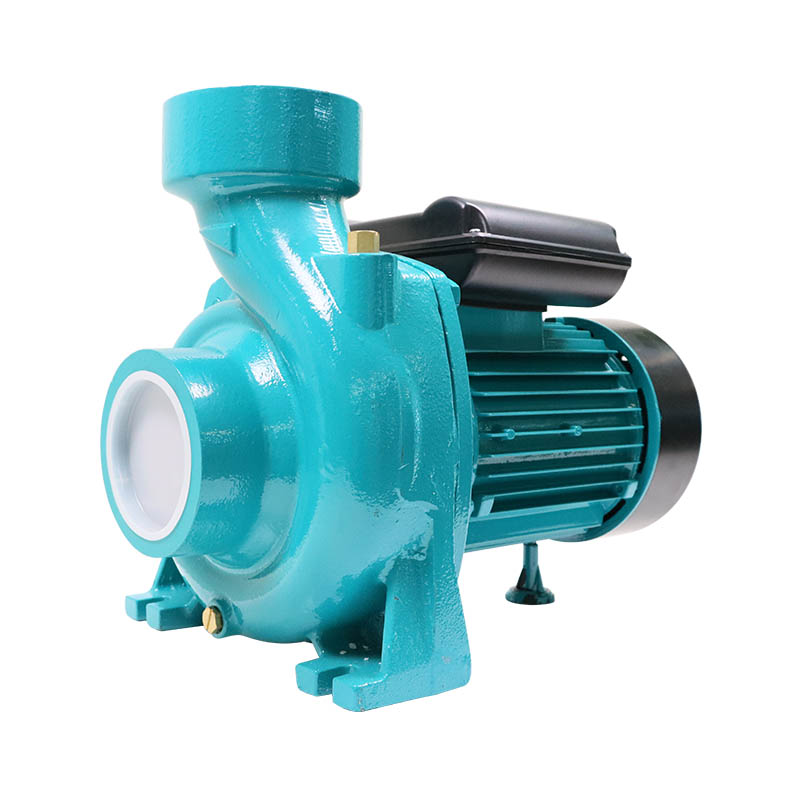

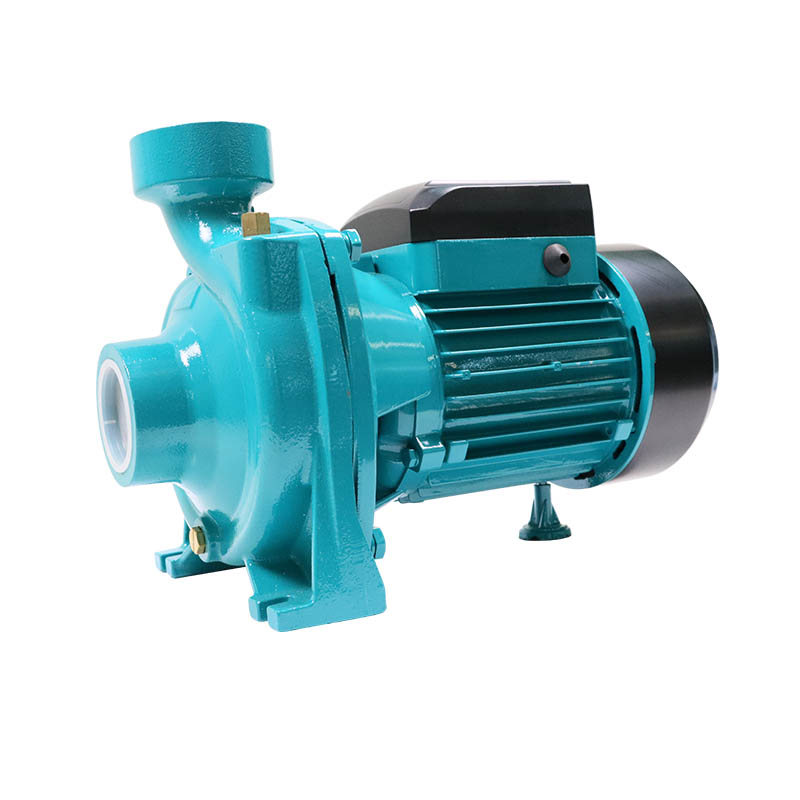

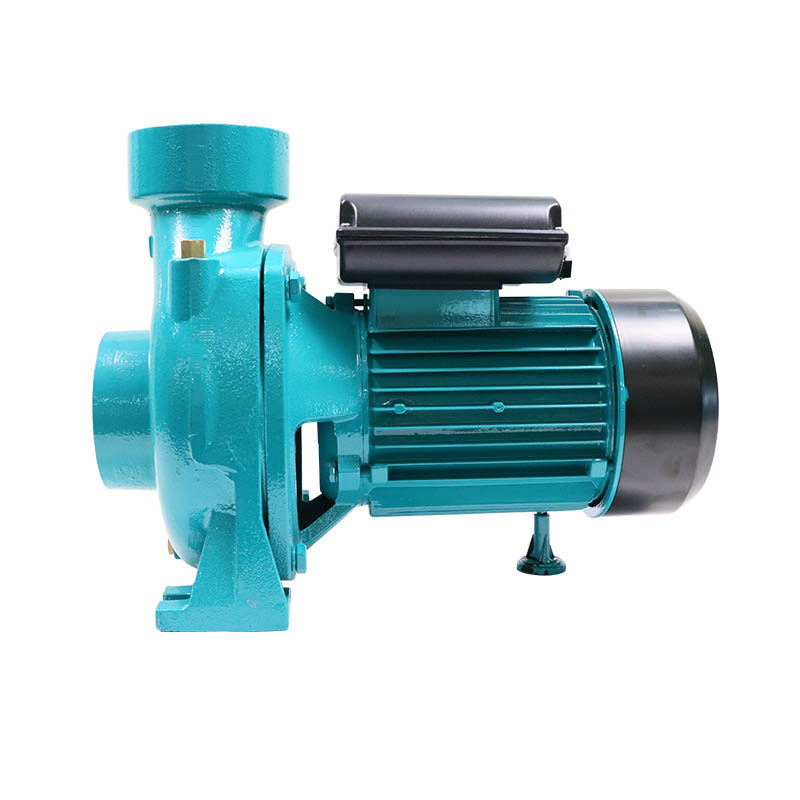

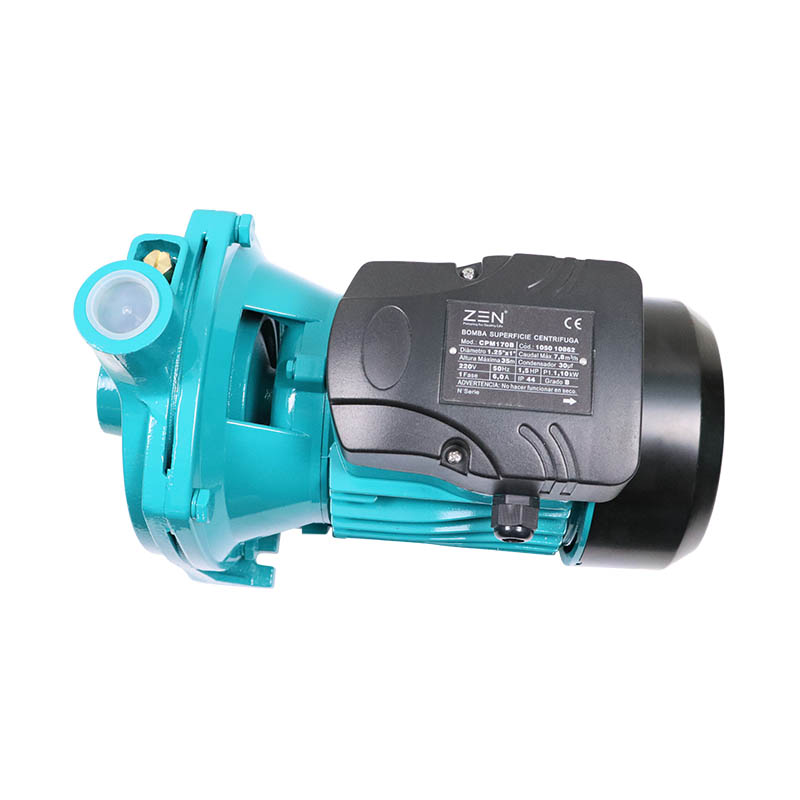

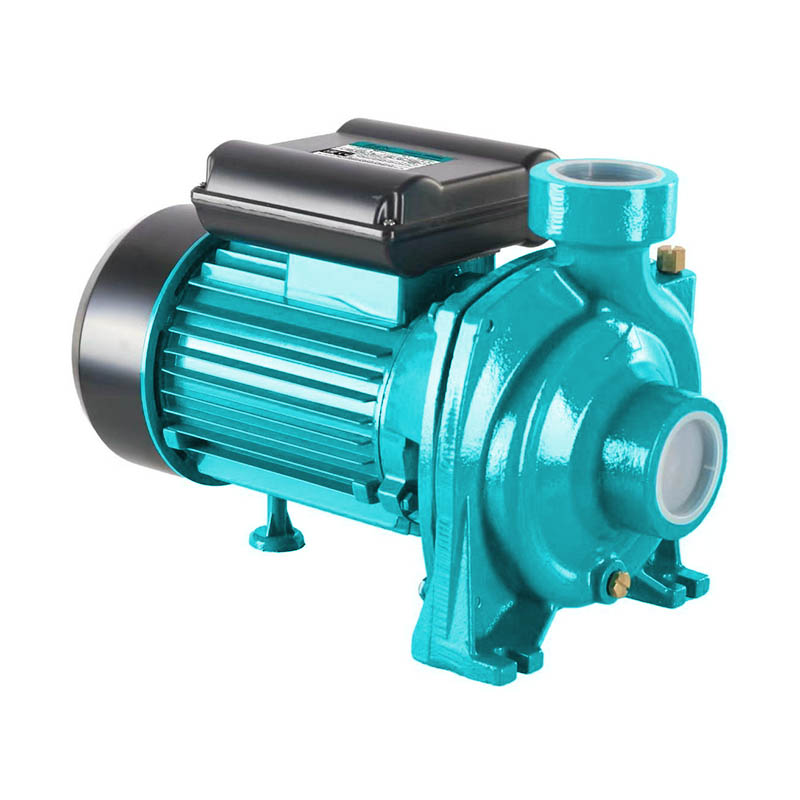

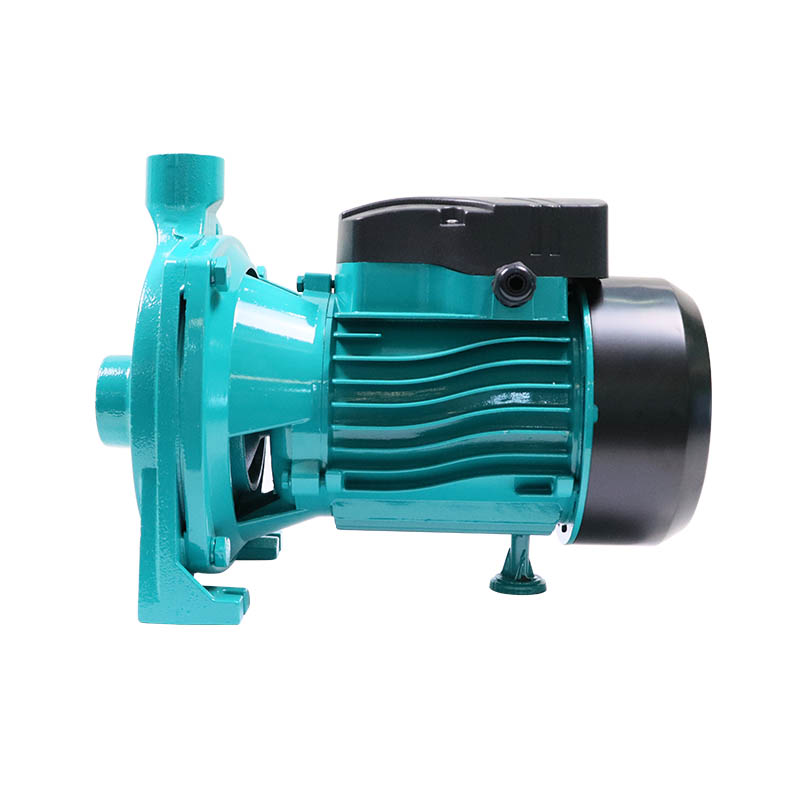

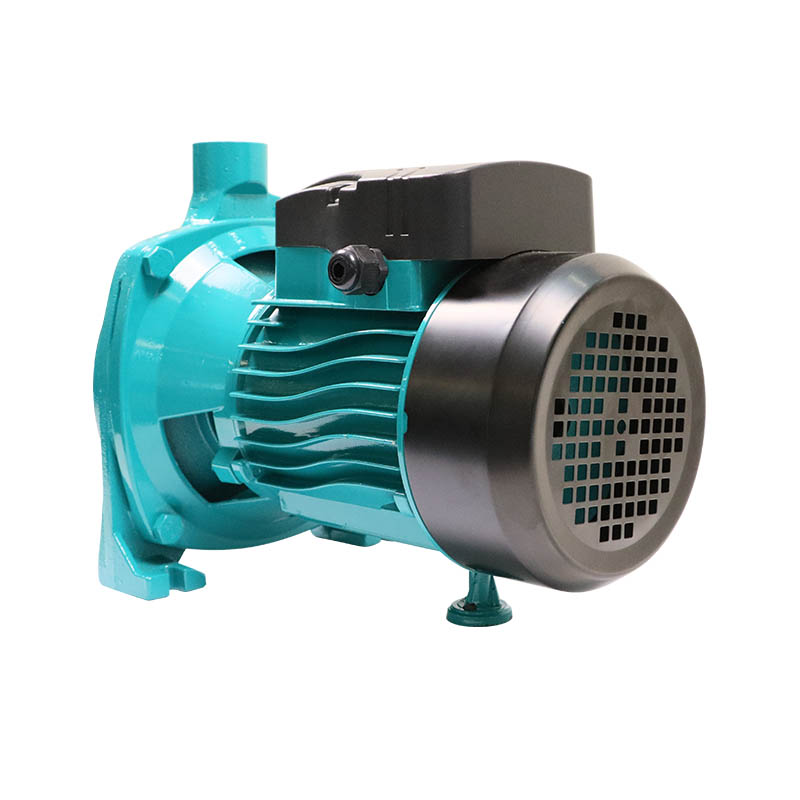

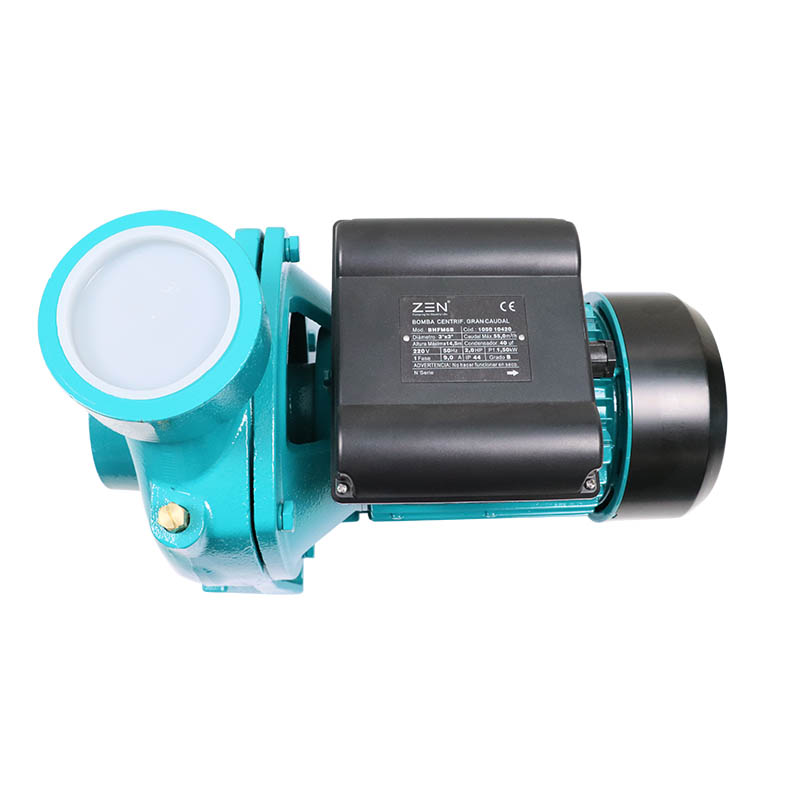

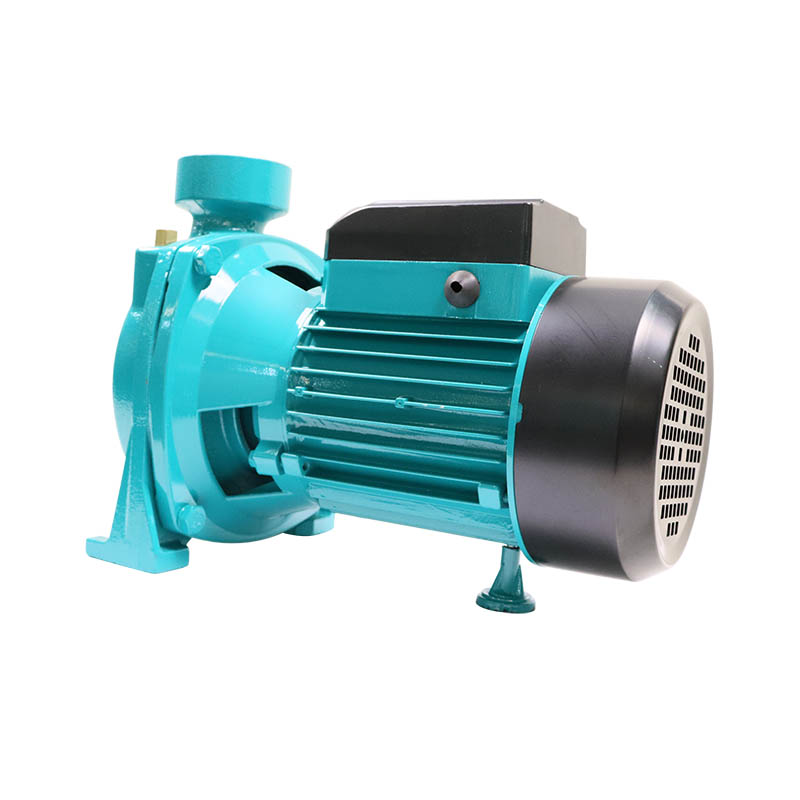

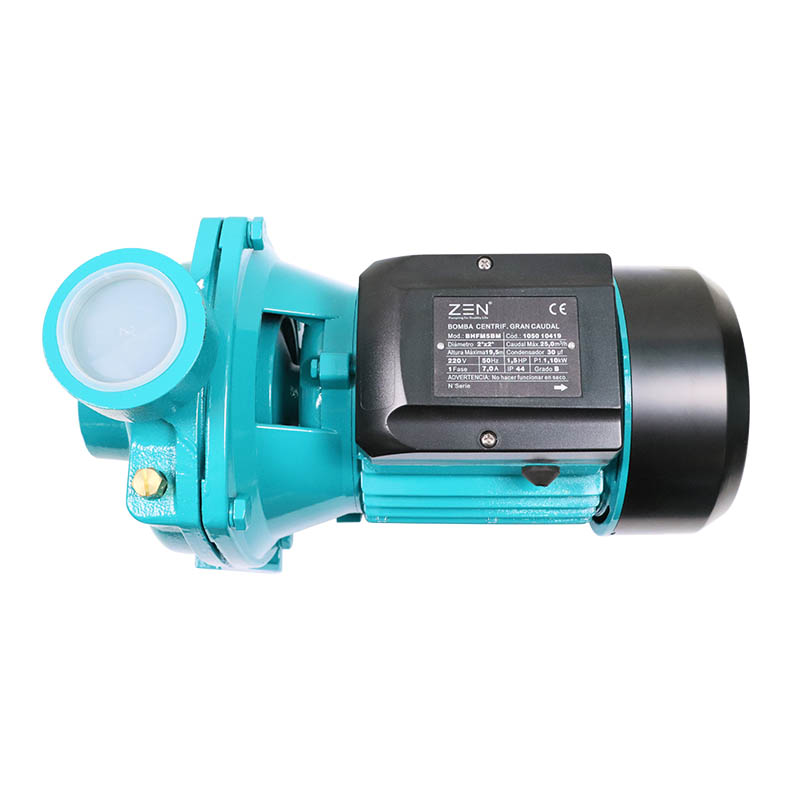

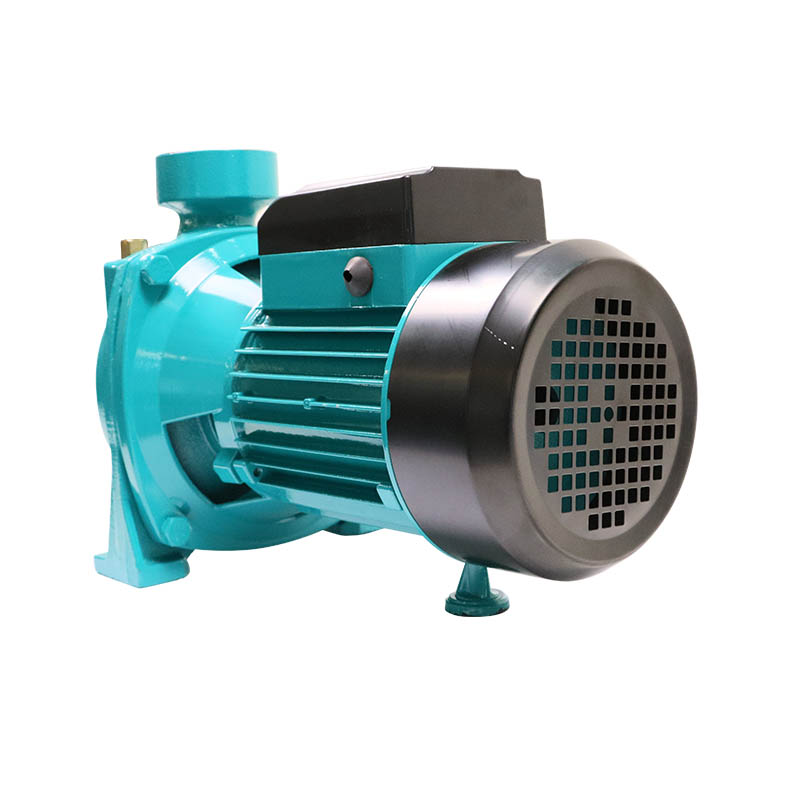

Xitoyning Taizhou shahrida joylashgan ZEN brendi zavodi ZHF(m) santrifüj nasos ishlab chiqarishga ixtisoslashgan.
IlovaFuqarolik va qishloq xo'jaligi maqsadlarida foydalaniladi.
Yuqori samaradorlik va uzluksiz ishlashi ushbu nasoslarni suv toshqini va püskürtme, bog'dorchilik, qishloq xo'jaligi, ko'l, daryo va quduqlarni qazib olish yoki yuqori oqim tezligi va past va o'rta bosim darajasini talab qiladigan boshqa sanoat ilovalari uchun ideal qiladi.
Nasoslar yopiq muhitda o'rnatilishi yoki hech bo'lmaganda yomon ob-havodan himoyalangan bo'lishi kerak.
• Maksimal. Ish bosimi 3,5 bar
• 60°C gacha suyuqlik harorati
• Atrof-muhit harorati 40°C gacha
• 8 m gacha to'liq assimilyatsiya qilish
• Uzluksiz ishlash
• Nasosi korpusi: quyma temir
• Nasosi braketi: quyma temir
• Dvigatel korpusi: alyuminiy
• Pervanel: guruch
• Dvigatel o'qi: karbonli po'lat, agar kerak bo'lsa, AlSI304 SS
• Mexanik muhr: SIC / grafit
• tortish rodli asinxron vosita (n = 2850 rpm)
• Izolyatsiya sinfi B
• Himoya IP44
• Uzluksiz xizmat Sl
• Bir fazali termal himoya
• Bir fazali 220 V / 50 Gts, 60 Gts (agar kerak bo'lsa)
• Uch fazali 380V / 50Hz, 60Hz (kerak bo'lsa)
| Model | Kirish quvvati | Maksimal oqim (L/min) |
Maksimal bosh (M) |
Maksimal diapazon (M) |
Miqdori (Sozlash) |
|||||
| KVt | HP | |||||||||
| ZHFM1E | 0.6 | 0.8 | 275 | 16 | 8 | 1630 | ||||
| ZHFM1A | 0.75 | 1.0 | 275 | 20 | 8 | 1630 | ||||
| ZHFM5C | 0.6 | 0.8 | 500 | 12.5 | 8 | 1280 | ||||
| ZHFM5B | 0.75 | 1.0 | 650 | 13.7 | 8 | 1280 | ||||
| ZHFM5A | 1.1 | 1.5 | 650 | 14.5 | 8 | 1280 | ||||
| ZHFM5BM | 1.1 | 1.5 | 600 | 20.2 | 8 | 950 | ||||
| ZHFM5AM | 1.5 | 2.0 | 600 | 22.5 | 8 | 950 | ||||
| ZHFM6C | 1.1 | 1.5 | 1100 | 11.9 | 8 | 670 | ||||
| ZHFM6B | 1.5 | 2.0 | 1200 | 14.7 | 8 | 670 | ||||
| ZHFM6A | 2.2 | 3.0 | 1300 | 18.5 | 8 | 600 | ||||
| ZHFM6CR | 1.1 | 1.5 | 1100 | 11.9 | 8 | 670 | ||||
| ZHFM6BR | 1.5 | 2.0 | 1200 | 14.7 | 8 | 670 | ||||
| ZHFM6AR | 2.2 | 3.0 | 1300 | 18.5 | 8 | 600 | ||||
| ZHFM7BR | 3.0 | 4.0 | 1300 | 21.8 | 8 | 600 | ||||
| ZHFM7AR | 4.0 | 5.5 | 2200 | 18.8 | 8 | 320 | ||||
| Model | Chiqishga kiring | N.V | L × W × H |
| (dyuym) | (Kg) | (mm) | |
| GA1B | 1½“×1½“ | 11.5 | 322×205×270 |
| GA1A | 1½“×1½“ | 12 | 322×205×270 |
| HFM5C | 2"×2" | 14.5 | 362×220×285 |
| HFM5B | 2"×2" | 15.5 | 362×220×285 |
| HFM5A | 2"×2" | 16 | 362×220×285 |
| HFM5BM | 2"×2" | 20.5 | 417×252×296 |
| HFM5AM | 2"×2" | 22 | 417×252×296 |
| HFM6C | 3"×3" | 28 | 445×279×345 |
| HFM6B | 3"×3" | 29 | 445×279×345 |
| HFM6A | 3"×3" | 30 | 520×279×345 |
| HFM6CR | 4“×4 | 29 | 445×279×345 |
| HFM6BR | 4"x4" | 30 | 445×279×345 |
| HFM6AR | 4"x4" | 32.5 | 530×279×345 |
| HFM7BR | 4"x4" | 41 | 530×279×345 |
| HFM7AR | 4"x4" | 85 | 600×340×440 |
| Raqam | Eslatmalar | Raqam | Eslatmalar | Eslatmalar | Eslatmalar |
| 1 | Chiqaruvchi vilka | 12 | Mandal | 23 | Kabel pressi |
| 2 | "O" halqasi | 13 | Mandal | 24 | Fairlea shahrida |
| 3 | Yuklash vilkasi | 14 | Yaralangan statorli korpus | 25 | mahkamlash paneli |
| 4 | Nasos korpusi | 15 | Stansiya | 26 | Kondensator |
| 5 | Yong'oq | 16 | Uchuvchi shlyapasi | 27 | Yiqilishdan himoya qilish |
| 6 | Bahor yuvish mashinasi | 17 | Mandal | 28 | Aloqa |
| 7 | G'ildirak | 18 | Muxlis | 29 | Kalit |
| 8 | Qisqichli halqa | 19 | Fan qopqog'i | 30 | Rotor |
| 9 | Mexanik muhr | 20 | Mandal | 31 | Aloqa |
| 10 | "O" halqasi | 21 | Qisqich qopqog'i | 32 | Ochiq uzuk |
| 11 | Nasosi braketi | 22 | vint |
