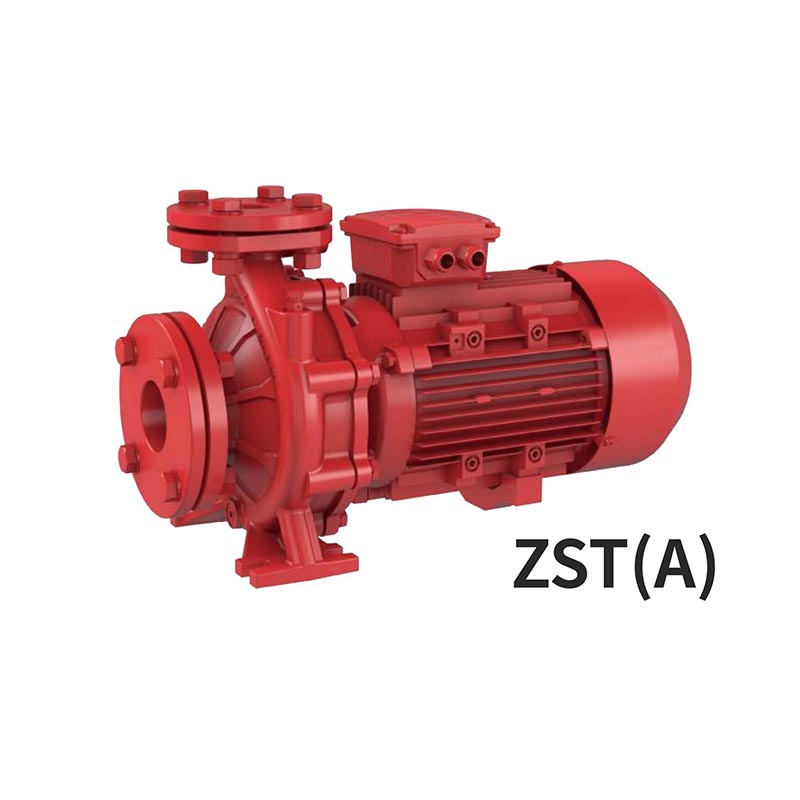

Центробежный насос с закрытой муфтой ZST(A)

Yuqori sifatli Zen Poms Comp (a) Yopiq koup Centrifugal nasosining yangi samaradorligi yangi samaradorligi bo'yicha yangi samaradorlik mahsuloti hisoblanadi. Ushbu nasos iP55 himoya reytingi va barqaror ishlashini ta'minlash uchun iP55 himoya reytingini va barqaror ishlashini ta'minlash uchun ultra yuqori samaradorlik bilan jihozlangan kvadrat va yuqori samaradorlik bilan jihozlangan kvadrat va yuqori darajadagi motor bilan jihozlangan. Nasos tanasi korpoziyaga qarshi maxsus qoplamaga ega va galvanizli to'rli lahzalar va oson o'rnatiladigan murvat va qistirmalari bilan standartga ega. Asosiy tarkibiy qismlar yuqori sifatli NSK podshipti va kiyingan mexanik muhrlar bilan jihozlangan, bu esa mahsulotning ishonchliligi va xizmat ko'rsatish muddatini juda yaxshilaydi. Yopiq birlashtirilgan markaziy koupuüuga sig'imi ZST (A) ni tanlash orqali tizimingizni kuchli va bardoshli operatsiya bilan ta'minlaysiz.

So'rov yuborish

Mahsulot tavsifi

ОПИСАНИЕ

◆Новый центробежный насос стандарта EN733

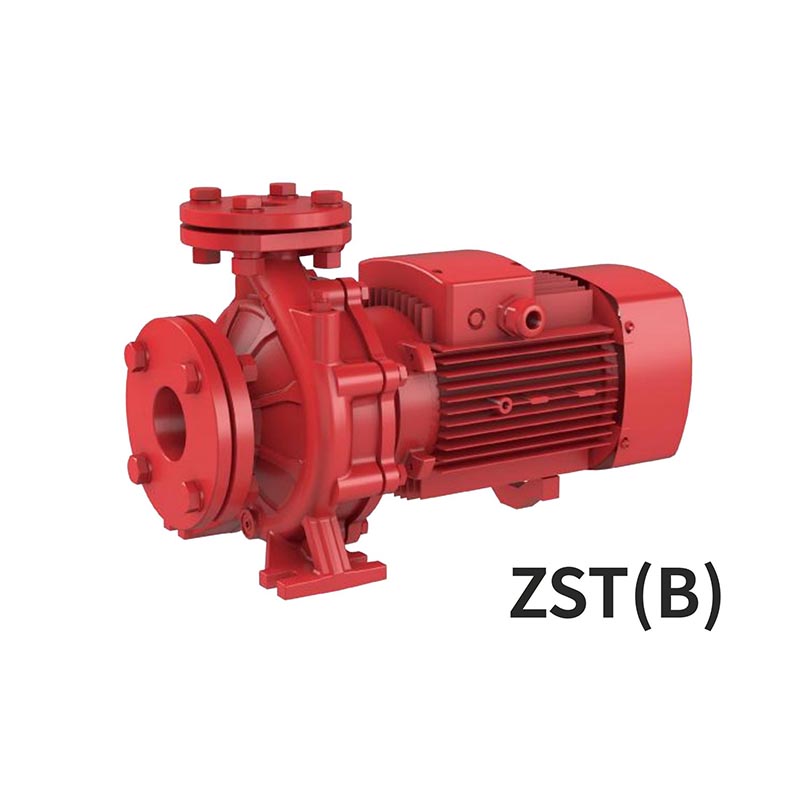

◆ Ikkala kvadrat va yumaloq motorlar mavjud

◆ IP55 sinfidagi yuqori samarali samaradorlik se3 dvigateli

◆Корпус насоса с антикоррозионным покрытием

◆ boltlar, yong'oq va qistirmalar bilan galvanizatsiyalangan gavjumchilik

◆ NSK podshipniki, eskirgan mexanik muhr

Arizalar

Yuqori sifatli shomilni yopiq koupuülastal nasos zst (a) rozseli ishlab chiqarilgan materiallar uchun tajovuzkor bo'lmagan toza suv va suyuqlik bilan ishlatish uchun mos keladi. En733 Centrefugaliya nasoslari suv ta'minoti tizimlarida, oqava suvlarni tozalash inshootlarida, bosimni kuchaytirish, sug'orish, sanoat, suv aylanishi tizimlarida foydalanish tavsiya etiladi.

ОГРАНИЧЕНИЯ ПО ПРИМЕНЕНИЮ

Температура жидкости от -10°C до +120°C

Температура окружающей среды от -10°C до +50°C

Максимальное рабочее давление 16 бар

Uzluksiz operatsiya S1

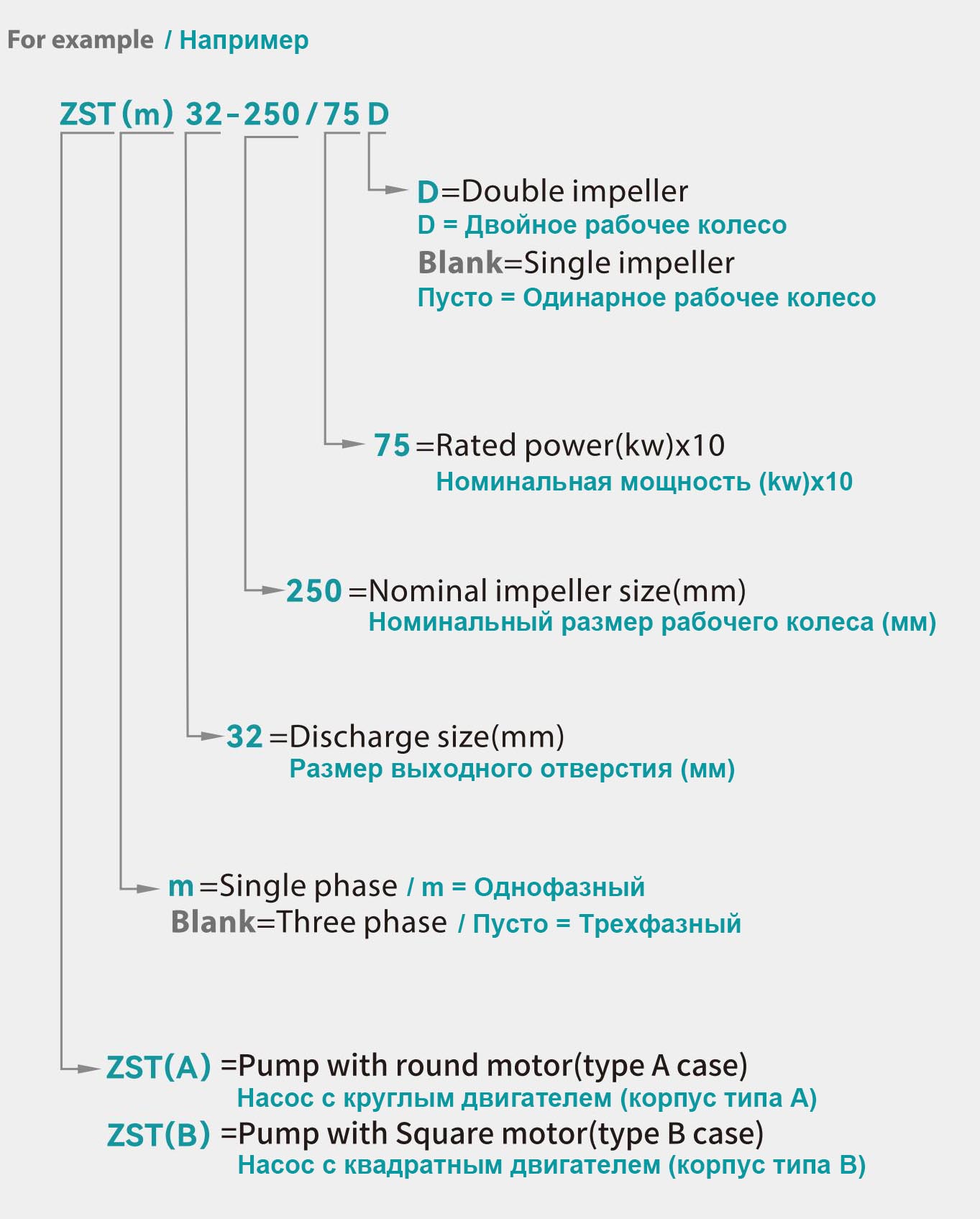

КОД МОДЕЛИ

ТЕХНИЧЕСКИЙ ЛИСТ

Model	ZST
Sig'im	0-400 m³/h
Bosh	0-151 m
Dn	32-125 mm
Tezlik	2900 rpm
Tmx	120 ℃
Власть	0.75-160KW
Напряжение	220/380/660V
Hz	50/60
Сорт	F darajasi f
Bu	IP55
Долг	S1 Uzluksiz
Корпус	Серый чугун
Рабочее колесо	Quyma temir / aision 304 / guruch
Вал	45 # po'lat / aision 304
Vodiy	Mexanik muhr
Tashuvchi	Подшипник качения с консистентной смазкой

Texnik ma'lumotlar 50Hz N = 2900 R / min

Model	Dn	Kuch		Q = etkazib berish
				AQSh GPM O	26	40	66	79	106	119	159	185	211	238	317	370	396	476	529	608
				l / min o	100	150	250	300	400	450	600	700	800	900	1200	1400	1500	1800	2000	2300
				mbur / h o	6	9	15	18	24	27	36	42	48	54	72	84	90	108	120	138
	mm	kvant	hp	H = bosh (m)
ZST 32-125/07	50x32	0.75	1	17.5	16.7	15	12	9	-	-	-	-	-	-	-	-	-	-	-	-
ZST 32-125/11	50x32	1.1	1.5	22	21	19.7	16.5	14.5	9	-	-	-	-	-	-	-	-	-	-	-
ZST 32-160/15	50x32	1.5	2	25.4	23.7	22.5	18.5	15.8	-	-	-	-	-	-	-	-	-	-	-	-
Zst 32-160 / 22	50x32	2.2	3	31	29.6	28.5	24.5	22	15	-	-	-	-	-	-	-	-	-	-	-
Zst 32-160 / 30	50x32	3	4	35	34.3	32.5	28	25.5	19	15	-	-	-	-	-	-	-	-	-	-
ZST 32-200/30	50x32	3	4	44.2	42	39.8	35.2	32.2	24.6	19.8	-	-	-	-	-	-	-	-	-	-
ZST 32-200/40	50x32	4	5.5	54.5	52	50	45.5	42.3	35	30.3	-	-	-	-	-	-	-	-	-	-
ZST 32-250/55	50x32	5.5	7.5	60	59.5	59	55	50.2	34.5	-	-	-	-	-	-	-	-	-	-	-
ZST 32-250/75	50x32	7.5	10	69.5	69	68.5	66	63	53	-	-	-	-	-	-	-	-	-	-	-
ZST 32-250/92	50x32	9.2	12.5	75	75	74.5	72	69	59	-	-	-	-	-	-	-	-	-	-	-
Zst 32-250 / 110	50x32	11	15	90	89.5	88	82	78	66	-	-	-	-	-	-	-	-	-	-	-
ZST 32-250/150	50x32	15	20	97	96.5	96	90	86	73	-	-	-	-	-	-	-	-	-	-	-
ZST 32-250/55D	50x32	5.5	7.5	79.5	74.7	71.8	63	56	37.5	-	-	-	-	-	-	-	-	-	-	-
Zst 32-250 / 75D	50x32	7.5	10	95	93	91	83	76	57.8	-	-		-	-	-	-	-	-	-	-
ZST 40-125/11	65x40	1.1	1.5	14.7	-	-	-	13	11.5	10.1	5.8	-	-	-	-	-	-	-	-	-
ZST 40-125/15	65x40	1.5	2	18.1	-	-	-	17	15	13.9	10	6	-	-	-	-	-	-	-	-
Zst 40-125 / 22	65x40	2.2	3	24.5	-	-	-	23.2	21.5	20.2	16	13	8.3	-	-	-	-	-	-	-
ZST 40-160/30	65 × 40	3	4	31.8	-	-	-	29.5	27.5	26.3	21.5	17.5	-	-	-	-	-	-	-	-
Zst 40-160 / 40	65x40	4	5.5	38	-	-	-	36	34	33	28.5	25	20.1	-	-	-	-	-	-	-
ZST 40-200/55	65x40	5.5	7.5	46	-	-	-	43.8	41.3	40.1	35	30	-	-	-	-	-	-	-	-
ZST 40-200/75	65x40	7.5	10	57	-	-	-	53.6	51.5	50	45	41	36.5	-	-	-	-	-	-	-
ZST 40-250/92	65x40	9.2	12.5	64	-	-	-	59	56.5	55	49.5	45	39.8	-	-	-	-	-	-	-
Zst 40-250 / 110	65x40	11	15	72	-	-	-	67.5	65	63.5	57.5	52.2	47	-	-	-	-	-	-	-
ZST 40-250/150	65x40	15	20	84.5	-	-	-	79.3	77.3	75.2	70	66	61	-	-	-	-	-	-	-
ZST 40-250/185	65 × 40	18.5	25	90	-	-	-	85.5	82.8	80.7	75.8	70.5	66.5	-	-	-	-	-	-	-
Zt 50-125 / 22	65x50	2.2	3	17	-	-	-	-	-	-	15.4	14	12.8	11.5	6.5	-	-	-	-	-
ZST 50-125 / 30	65x50	3	4	20	-	-	-	-	-	-	18.8	18	17	15.6	11	-	-	-	-	-
ZST 50-125/40	65x50	4	5.5	24	-	-	-	-	-	-	23.1	23	21.5	20.3	15.8	11.8	-	-	-	-
ZST 50-160/55	65x50	5.5	7.5	32	-	-	-	-	-	-	30.6	30	28	26.6	20.5	14.8	-	-	-	-
ZST 50-160/75	65x50	7.5	10	40	-	-	-	-	-	-	38	37	36	34.4	29	24	21	-	-	-
ZSST 50-200 / 92	65x50	9.2	12.5	50.5	-	-	-	-	-	-	46.8	45	43	40.9	32.5	26.7	-	-	-	-
ZST 50-200 / 110	65x50	11	15	57.5	-	-	-	-	-	-	53.5	52	50	47.5	40	34	29	-	-	-
ZST 50-200 / 150	65x50	15	20	62	-	-	-	-	-	-	58	56.5	54.5	52	44.5	39	35.5	-	-	-
ZST 50-250 / 150	65 × 50	15	20	68.5	-	-	-	-	-	-	64	63	61.5	59	50	41	-	-	-	-
ZSST 50-250 / 185	65x50	18.5	25	79	-	-	-	-	-	-	75.8	74.8	74	71.5	63.5	55.5	47	-	-	-
ZST 50-250 / 220	65x50	22	30	89.5	-	-	-	-	-	-	86	85.3	84	81.5	73.5	63.5	57	-	-	-
ZST 65-125/40	80x65	4	5.5	19	-	-	-	-	-	-	-	-	17.3	16.8	14.5	13	11.8	-	-	-
ZST 65-125/55	80x65	5.5	7.5	23	-	-	-	-	-	-	-	-	21.3	20.9	19	17.5	16.7	13.7	-	-
Zst 65-125 / 75	80x65	7.5	10	27	-	-	-	-	-	-	-	-	26	25.6	24.5	23	22.5	20	18	-
Zst 65-160 / 92	80x65	9.2	12.5	33	-	-	-	-	-	-	-	-	-	31.5	30	28	27.1	24	21.5	-
Zst 65-160 / 110	80x65	11	15	36	-	-	-	-	-	-	-	-	-	34.5	33	31.5	30.8	28	25.5	-
ZST 65-160/150	80x65	15	20	42	-	-	-	-	-	-	-	-	-	41	40	38.5	37.8	35	33	29.5
Zst 65-200 / 150	80x65	15	20	45	-	-	-	-	-	-	-	-	-	45.5	43	41	40.2	36.5	34	-
Zst 65-200 / 185	80x65	18.5	25	52	-	-	-	-	-	-	-	-	-	52.3	51	49	48.2	44.5	42	-
ZST 65-200/220	80x65	22	30	59	-	-	-	-	-	-	-	-	-	59.5	58	56	55	52	49.5	44.5
Zst 65-250 / 220	80x65	22	30	64.8	-	-	-	-	-	-	-	-	-	64.7	62	60	58.5	53	50	-
Zst 65-250 / 300	80x65	30	40	80	-	-	-	-	-	-	-	-	-	79.8	77.5	75.5	74.5	70	66	58
ZST 65-250/370	80x65	37	50	92	-	-	-	-	-	-	-	-	-	905	88.5	87	85	80.5	78	68

Model	Dn	Kuch		Q = etkazib berish
				AQSh GPM O	264	396	529	634	793	881	925	969	1057	1233	1322	1586	1762
				l / min o	1000	1500	2000	2400	3000	3333	3500	3667	4000	4667	5000	6000	6667
				mbur / h o	60	90	120	144	180	200	210	220	240	280	300	360	400
	mm	kvant	hp	H = bosh (m)
ZST 65-315/450	80x65	45	60	102	98	94.5	90	83	-	-	-	-	-	-	-	-	-
Zst 65-315 / 550	80x65	55	75	122	120	114.5	110	100	76	-	-	-	-	-	-	-	-
Zst 65-315 / 750	80x65	75	100	141	141	134.5	130	120	96	78	65.5	-	-	-	-	-	-
Zst 65-315 / 900	80x65	90	125	151	150	144.5	140	130	106	88	75.5	-	-	-	-	-	-
ZST 80-125 / 40	100x80	4	5.5	17	15	12.3	7.5	-	-	-	-	-	-	-	-	-	-
ZST 80-125/55	100x80	5.5	7.5	21	19.6	17.4	13.4	9.5	-	-	-	-	-	-	-	-	-
ZST 80-125/75	100x80	7.5	10	26	24.8	23	19.5	16.5	-	-	-	-	-	-	-	-	-
ZST 80-160 / 110	100x80	11	15	28	27	27.3	24.5	21.1	16		-	-	-	-	-	-	-
Zst 80-160 / 150	100x80	15	20	34	32.6	32.5	30.2	27	22.1	18.5	16.7	-	-	-	-	-	-
ZST 80-160 / 185	100x80	18.5	25	39	38.5	38	36.7	33.6	28.8	25.3	23.5	-	-	-	-	-	-
ZST 80-160 / 220	100x80	22	30	44	43.5	43	41.7	38.6	33.8	30.3	28.5	-	-	-	-	-	-
ZST 80-200/220	100x80	22	30	48	47.7	47.5	43.5	39.2	32.5	27.2	24.5	-	-	-	-	-	-
ZST 80-200/300	100x80	30	40	60	59.7	59.5	57	53.1	47	42.7	40.5	-	-	-	-	-	-
ZSST 80-250 / 370	100x80	37	50	71.5	70.9	70.5	65.5	59.3	51	43.2	38.5	-	-	-		-	-
ZSST 80-250 / 450	100x80	45	60	88	86.7	86	83.6	78.5	70.5	60	51	-	-	-	-	-	-
ZSST 80-250 / 550	100x80	55	75	94.5	94.5	94.5	91.8	87	79.5	72.1	68.3	-	-	-	-	-	-
Zst 80-315 / 450	100x80	45	60	85	84	82.6	82	78	68.3	61	56	-	-	-	-	-	-
Zst 80-315 / 550	100x80	55	75	98	97	95.6	95	91	81.3	74	69	-	-	-	-	-	-
ZST 80-315/750	100x80	75	100	124	123	121.6	121	117	107.3	100	95	90	80.8	-	-	-	-
Zst 80-315 / 900	100x80	90	125	144	143	141.6	141	137	127.3	120	115	110	100.8	-	-	-	-
ZST 100-160/150	125x100	15	20	35	33.5	32.5	30	27.8	24.5	21.5	20	18.3	15	-	-	-	-
ZST 100-160/185	125x100	18.5	25	38.5	37.5	36.5	34.3	32.2	29	25.7	24	22	18	-	-	-	-
ZST 100-160/220	125x100	22	30	43	41	40	37.6	35.2	31.5	28.5	27	25.3	22	-	-	-	-
ZST 100-200/220	125x100	22	30	38.5	36.7	35.7	33.8	31.7	28.5	26.8	26	25	22.9	16.3	13	-	-
ZSST 100-200 / 300	125x100	30	40	44.5	42.5	42	40.2	38.8	36.7	34.2	33	31.7	29	21.7	18	-	-
Zst 100-200 / 370	125x100	37	50	55	53	51	50.6	49.2	47	45	44	42.8	40.5	32.8	29	-	-
ZST 100-250/450	125x100	45	60	65	65	64	63	61	58	56	55	53.3	50	39	33.5	-	-
ZST 100-250/550	125x100	55	75	77	76	75.5	75	73.8	72	71.7	71.5	70.7	69	62.3	59	-	-
Zst 100-250 / 750	125x100	75	100	91	91	90.5	89.7	88	85.5	84	83.3	81.5	78	71.7	68.5	48	-
ZST 100-250/900	125x100	90	125	100	100	99.5	98.7	97	94.5	93	92.3	90.5	87	80.7	77.5	57	-
Zst 100-315 / 750	125x100	75	100	80	-	-	78.5	76.7	74	73	72.8	72.5	70.7	68	64	52	-
ZSST 100-315 / 900	125x100	90	125	100	-	-	98.5	96.7	94	93	92.8	92.5	90.7	88	84	72	-
ZSST 100-315 / 1100	125x100	110	150	118	-	-	116.5	114.7	112	111	110.8	110.5	108.7	106	102	90	-
ZST 100-315/1320	125x100	132	180	129	-	-	127.5	125.7	123	122	121.8	121.5	119.7	117	112	101	-
ZSST 100-315 / 1600	125x100	160	220	148	-	-	146.5	144.7	142	141	140.8	140.5	138.7	136	132	120	-
ZST 125-200/450	150x125	45	60	39.8	-	-	39.3	39.2	39	38.9	38.9	38.8	37.5	35	34	28.6	25
ZST 125-200/550	150x125	55	75	50.5	-	-	49.3	49.2	49	48.9	48.9	48.8	47.5	45	44	38.6	35
ZST 125-200 / 750	150x125	75	100	61.5	-	-	60.3	60.2	60	59.9	59.9	59.8	58.5	56	55	49.6	46
ZST 125-250/550	150x125	55	75	70	-	-	67	66	64	63	62	61	59.5	54	50.5	-	-
ZST 125-250/750	150x125	75	100	80	-	-	76.5	75.5	74	73	72	71.5	70	67	65	56	-
ZST 125-250 / 900	150x125	90	125	87	-	-	84	82.5	81	79.5	79	78	77	73.5	71.5	65	60
