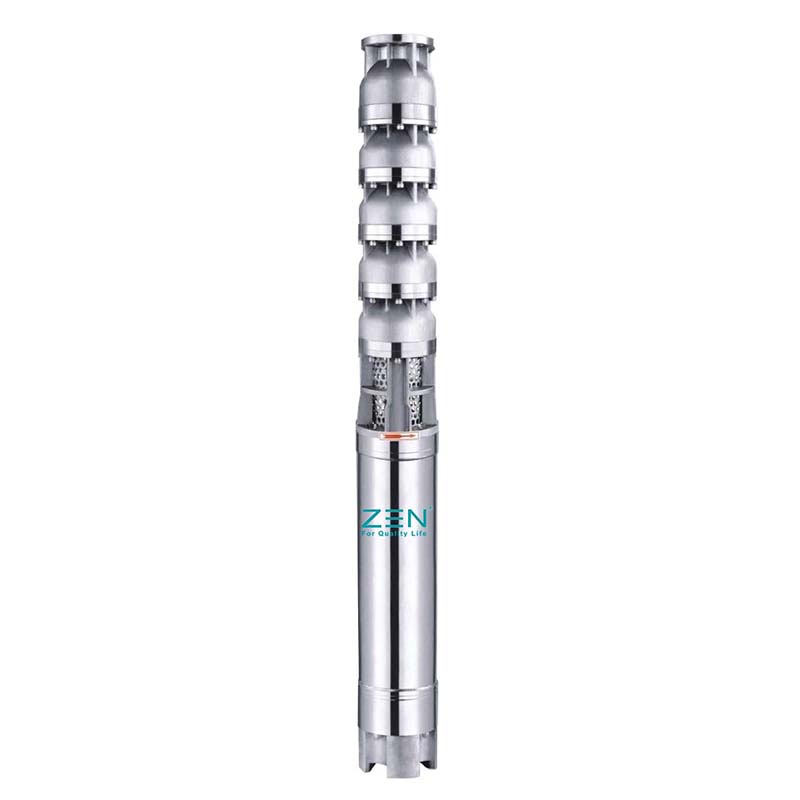

10QJS zanglamas po'latdan yasalgan suv bilan to'ldirilgan chuqur quduq pompasi 50TW 400-600 darajali silikon po'latdan yasalgan bo'lib, u kichik harorat ko'tarilishi, yaxshi energiya tejovchi effekti va uzoq xizmat muddati bilan ajralib turadi.
1. Diametri 250 mm dan ortiq bo'lgan chuqur quduqlar uchun javob beradi.
2. Butun nasos va vosita: zanglamaydigan po'latdan nozik quyma
Xususiyatlari: korroziyaga chidamlilik, barqaror ishlash, uzoq xizmat muddati.
3. Dvigatel o'rashiga zarar bermasdan chastota konvertori ishga tushirish va ishga tushirish uchun javob beradi.
4. Moslashtirish qo'llab-quvvatlanadi: sovuq yoki issiq suv tanlanishi mumkin
5. Moslashtirishni qo'llab-quvvatlash: Majburiy emas materiallar: 304 - 316 - 316L - 2205 zanglamaydigan po'lat va boshqa materiallar.
Oqim: 230 m³/soatga yetishi mumkin
Suv balandligi: 270 metr
* Keng kuchlanishli dizayn, 300V - 420V xavfsiz va barqaror ishlash.
* Elektr dvigateli: 50TW 400 - 600 silikon po'lat plitalar, kichik harorat ko'tarilishi, yaxshi energiya tejovchi effekt, uzoq xizmat muddati.
* Dvigatel elektromagnit ulanishi: 180C. Izolyatsiya sinfi: H darajasi
* Elektr liniyalari: F46 Yuqori haroratli suv o'tkazmaydigan materiallar.
* Asosiy podshipnik qistirmalari: Morgan brendi (Buyuk Britaniyadan), material: yuqori tozalikdagi grafit qotishmasi, 80 000 soat uzluksiz ishlaydi.
* Elektromagnit dizayn: O'q yuki o'q quvvatidan 1,35 marta o'rnatiladi.
*Dvigatelning asosiy o'qi: 40Cr/42Cr - Dvigatel shikastlanmasligi uchun Mo.
* Qayta ishlash aniqligi klassi: birinchi aniqlik darajasi B.
| Model | G'ildirak |
Maksimal kurs m³/soat |
Maksimal harakat (m) |
Quvvat dvigatel |
Maksimal nasos O.D |
Eksport hajmi | ||
| KVt | HP | mm | dyuym | mm | ||||
| 10QJS80T-30/1 | 1 | 80 | 30 | 11 | 15 | 233 | 4" | 100 |
| 10QJS80T-60/2 | 2 | 80 | 60 | 22 | 30.0 | 4" | 100 | |
| 10QJS80T-90/3 | 3 | 80 | 90 | 30 | 40.0 | 4" | 100 | |
| 10QJS80T-120/4 | 4 | 80 | 120 | 45 | 60.0 | 4" | 100 | |
| 10QJS80T-150/5 | 5 | 80 | 150 | 55 | 75.0 | 4" | 100 | |
| 10QJS80T-180/6 | 6 | 80 | 180 | 63 | 84.0 | 4" | 100 | |
| 10QJS80T-210/7 | 7 | 80 | 210 | 75 | 100.0 | 4" | 100 | |
| 10QJS80T-240/8 | 8 | 80 | 240 | 90 | 120.0 | 4" | 100 | |
| 10QJS80T-270/9 | 9 | 80 | 270 | 110 | 150.0 | 4" | 100 | |
| 10QJS80T-300/10 | 10 | 80 | 300 | 110 | 150.0 | 4" | 100 | |
| 10QJS100T-30/1 | 1 | 100 | 30 | 15 | 20.0 | 5" | 125 | |
| 10QJS100T-60/2 | 2 | 100 | 60 | 25 | 33.5 | 5" | 125 | |
| 10QJS100T-90/3 | 3 | 100 | 90 | 45 | 60.0 | 5" | 125 | |
| 10QJS100T-120/4 | 4 | 100 | 120 | 55 | 75.0 | 5" | 125 | |
| 10QJS100T-150/5 | 5 | 100 | 150 | 75 | 100.0 | 5" | 125 | |
| 10QJS100T-180/6 | 6 | 100 | 180 | 90 | 120.0 | 5" | 125 | |
| 10QJS100T-210/7 | 7 | 100 | 210 | 110 | 150.0 | 5" | 125 | |
| 10QJS100T-240/8 | 8 | 100 | 240 | 110 | 150.0 | 5" | 125 | |
| 10QJS100T-270/9 | 9 | 100 | 270 | 125 | 167.0 | 5" | 125 | |
| 10QJS125T-30/1 | 1 | 125 | 30 | 18.5 | 25.0 | 5" | 125 | |
| 10QJS125T-60/2 | 2 | 125 | 60 | 37 | 50.0 | 5" | 125 | |
| 10QJS125T-90/3 | 3 | 125 | 90 | 55 | 75.0 | 5" | 125 | |
| 10QJS125T-120/4 | 4 | 125 | 120 | 75 | 100.0 | 5" | 125 | |
| 10QJS125T-150/5 | 5 | 125 | 150 | 90 | 120.0 | 5" | 125 | |
| 10QJS125T-180/6 | 6 | 125 | 180 | 110 | 150.0 | 5" | 125 | |
| 10QJS125T-210/7 | 7 | 125 | 210 | 125 | 167.0 | 5" | 125 | |
| 10QJS140T-30/1 | 1 | 140 | 30 | 22 | 30.0 | 5" | 125 | |
| 10QJS140T-90/3 | 3 | 1 40 | 90 | 63 | 84.0 | 5" | 125 | |
| 10QJS140T-120/4 | 4 | 140 | 120 | 90 | 120.0 | 5" | 125 | |
| Model | G'ildirak |
Maksimal kurs m³/soat |
Maksimal harakat (m) |
Quvvat dvigatel |
Maksimal nasos O.D |
Eksport hajmi | ||
| KVt | HP | mm | dyuym | mm | ||||
| 10QJS140T-150/5 | 5 | 140 | 150 | 110 | 150 | 233 | 5" | 125 |
| 10QJS140T-180/6 | 6 | 140 | 180 | 125 | 167.0 | 5" | 125 | |
| 10QJS160T-25/1 | 1 | 160 | 25 | 18.5 | 25.0 | 6" | 150 | |
| 10QJS160T-50/2 | 2 | 160 | 50 | 37 | 50.0 | 6" | 150 | |
| 10QJS160T-75/3 | 3 | 160 | 75 | 55 | 75.0 | 6" | 150 | |
| 10QJS160T-100/4 | 4 | 160 | 100 | 75 | 100.0 | 6" | 150 | |
| 10QJS160T-125/5 | 5 | 160 | 125 | 90 | 120.0 | 6" | 150 | |
| 10QJS160T-150/6 | 6 | 160 | 150 | 110 | 150.0 | 6" | 150 | |
| 10QJS160T-175/7 | 7 | 160 | 175 | 140 | 187.0 | 6" | 150 | |
| 10QJS160T-200/8 | 8 | 160 | 200 | 160 | 213.5 | 6" | 150 | |
| 10QJS160T-225/9 | 9 | 160 | 225 | 180 | 240.0 | 6" | 150 | |
| 10QJS180T-25/1 | 1 | 180 | 25 | 22 | 30.0 | 6" | 150 | |
| 10QJS180T-50/2 | 2 | 180 | 50 | 45 | 60.0 | 6" | 150 | |
| 10QJS180T-75/3 | 3 | 180 | 75 | 75 | 100.0 | 6" | 150 | |
| 10QJS180T-100/4 | 4 | 180 | 100 | 90 | 120.0 | 6" | 150 | |
| 10QJS180T-125/5 | 5 | 180 | 125 | 110 | 150.0 | 6" | 150 | |
| 10QJS180T-150/6 | 6 | 180 | 150 | 125 | 167.0 | 6" | 150 | |
| 10QJS200T-25/1 | 1 | 200 | 25 | 25 | 33.5 | 6" | 150 | |
| 10QJS200T-50/2 | 2 | 200 | 50 | 55 | 75.0 | 6" | 150 | |
| 10QJS200T-75/3 | 3 | 200 | 75 | 75 | 100.0 | 6" | 150 | |
| 10QJS200T-100/4 | 4 | 200 | 100 | 110 | 150.0 | 6" | 150 | |
| 10QJS200T-125/5 | 5 | 200 | 125 | 125 | 167.0 | 6" | 150 | |
| 10QJS230T-40/2 | 2 | 230 | 40 | 45 | 60.0 | 6" | 150 | |
| 10QJS230T-60/3 | 3 | 230 | 60 | 63 | 84.0 | 6" | 150 | |
| 10QJS230T-80/4 | 4 | 230 | 80 | 90 | 120.0 | 6" | 150 | |
| 10QJS230T-100/5 | 5 | 230 | 100 | 110 | 150.0 | 6" | 150 | |
| 10QJS230T-120/6 | 6 | 230 | 120 | 125 | 167.0 | 6" | 150 | |
| 10QJS230T-160/8 | 8 | 230 | 160 | 160 | 213.5 | 6" | 150 | |
