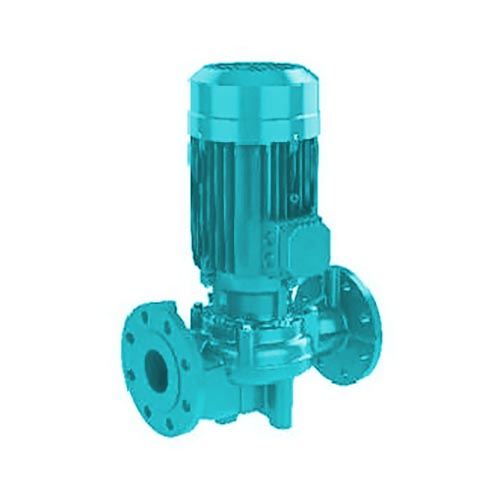

CGW quvurli kanalizatsiya nasosimahsulot assortimenti80CGW275Chiqish hajmiNasos turiUstunQuvvatChiqish hajmi (mm)Nasos turiqutb(KVt)diapazon xususiyatiQuvvat1,5-7,5 kVt quvvatga egaElektrod / qutblar2Kalibr / tushirishDN50-80Maks. oqim tezligi / Maksimal oqim tezligi150 m³/soatMaksimal bosh47 m......
| 80 | CGW | 2 | 75 | |||||
| Chiqish hajmi | Nasos turi | Ustun | Quvvat | |||||
| Chiqish hajmi (mm) | Nasos turi | qutb | (KVt) | |||||
| Quvvat | 1,5-7,5 kVt quvvatga ega |
| Elektrod / qutblar | 2 |
| Kalibr / tushirish | DN50-80 |
| Maks. oqim tezligi / Maksimal oqim tezligi | 150 m³/soat |
| Maksimal bosh | 47 m |
| Model Turi |
Kalibr A (mm) |
L (mm) |
H (mm) |
H1 (mm) |
D0 (mm) |
n-d0 (mm) |
| 50-CGW2-1,5 | 50 | 350 | 523 | 100 | 118 | 8-f18 |
| 50-CGW2-2.2 | 50 | 350 | 523 | 100 | 118 | 8-f18 |
| 80-CGW2-1,5 | 80 | 360 | 523 | 100 | 118 | 8-f18 |
| 80-CGW2-2.2 | 80 | 360 | 523 | 100 | 118 | 8-f18 |
| 80-CGW2-3,7 | 80 | 360 | 537 | 110 | 160 | 8-f18 |
| 80-CGW2-5,5 | 80 | 450 | 652 | 110 | 160 | 8-f18 |
| 80-CGW2-7,5 | 80 | 450 | 652 | 110 | 160 | 8-f18 |
| Model Turi |
Kuchlanishi Voltaj (v) |
Quvvat | Calibre/0utlet | Zarrachalar hajmini o'tkazib yuboring (mm) |
Cheklangan maʼlumotlar Q.baholangan (m³/soat) |
Nominal ko'tarish H.baholangan (m) |
MAX. OQIM Q.maks (m³/soat) |
Maksimal ko'tarish H.maks (m) |
Og'irligi G.V (kg) |
Posilka hajmi (sm) |
||
| (KVt) | (HP) | (dyuym) | (mm) | |||||||||
| 50CGW2-1,5 | 3Ph/380V | 1.5 | 2 | 2” | 50 | 20 | 25 | 12 | 34 | 20 | 36.2 | 54*36*28 |
| 50CGW2-2.2 | 3Ph/380V | 2.2 | 3 | 2” | 50 | 20 | 25 | 17 | 39 | 24 | 38.5 | 54*36*28 |
| 80CGW2-3,7 | 3Ph/380V | 3.7 | 5 | 3” | 80 | 20 | 36 | 20 | 80 | 27 | 55 | 55*39*26 |
| 80CGW2-5,5 | 3Ph/380V | 5.5 | 7.5 | 3” | 80 | 20 | 36 | 28 | 74 | 36 | 87 | 67*47*36 |
| 80CGW2-7,5 | 3Ph/380V | 7.5 | 10 | 3” | 80 | 20 | 36 | 34 | 102 | 41 | 90 | 67*47*36 |
