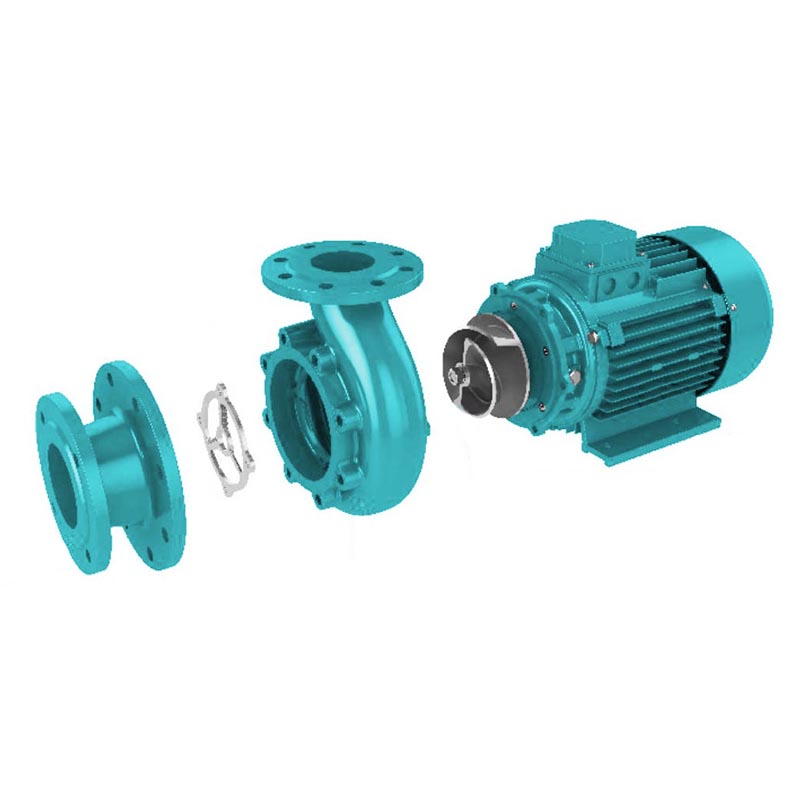

HWC silliqlash mashinasi quvur liniyasi kanalizatsiya nasosimahsulot assortimenti80HWC211Chiqish hajmiChiqish hajmi(mm)Nasos turiNasos turi Ikki qutbli dvigatelIkki kutupli dvigatelIkki kutupli dvigatelQuvvatQuvvat(KVt)diapazon xususiyatiQuvvat1,5-15 kVtpolyaklar2Kalibr / tushirishDN50-100MAX. OQIM/......
| 80 | HWC | 2 | 11 |
| Chiqish hajmi Chiqish hajmi (mm) |
Nasos turi Nasos turi Ikki qutbli dvigatel |
Ikki kutupli dvigatel Ikki kutupli dvigatel |
Quvvat Quvvat (KVt) |
| Quvvat | 1,5-15 kVt |
| polyaklar | 2 |
| Kalibr / tushirish | DN50-100 |
| MAX. OQIM/Maks. oqim tezligi | 161 m³/soat |
| MAX. PRESSURE/Maks bosh | 42 m |
| Turi |
L (mm) | L2 (mm) | L3(mm) | H (mm) | H1 (mm) | H2 (mm) | Vt (mm) | W1 (mm) | W2 (mm) | J1 (mm) | C1 (mm) | C2 (mm) | J2 (mm) | G (mm) | G1 (mm) | A1 (mm) | A (mm) | d (mm) | D (mm) | D0 (mm) |
| 50HWC2-1,5kVt | 430 | 426 | 183 | 220 | 90 | 224.5 | 181 | - | - | - | 140 | 184 | 4-f10 | - | 125 | 140 | 50 | f160 | f110 | 4-f14 |
| 50HWC2-2,2kVt | 466 | 433 | 190 | 285 | 120 | 224.5 | 228 | 160 | 210 | 15 | 140 | 184 | 4-f10 | 175 | 125 | 165 | 50 | f160 | f110 | 4-f14 |
| 50HWC2-3,7kVt | 521 | 488 | 202 | 281 | 112 | 289 | 235 | 180 | 230 | 15 | 190 | 220 | 4-f12 | 187 | 140 | 165 | 50 | f160 | f110 | 4-f14 |
| 80HWC2-7,5kVt | 562 | 530 | 237.5 | 352 | 152 | 345 | 292 | 212 | 263 | 12 | 216 | 270 | 4-f12 | 140 | 198 | 200 | 80 | f210 | f160 | 8-f18 |
| 80HWC2-9,2kVt | 738 | 703 | 481 | 415.5 | 180 | 390 | 334 | 254 | 318 | 17 | 254 | 315 | 2-f17 | 443.5 | - | 200 | 80 | f210 | f160 | 8-f18 |
| 80HWC2-11kVt | 738 | 703 | 481 | 415.5 | 180 | 390 | 334 | 254 | 318 | 17 | 254 | 315 | 2-f17 | 443.5 | - | 200 | 80 | f210 | f160 | 8-f18 |
| 80HWC2-15kVt | 738 | 703 | 481 | 415.5 | 180 | 390 | 334 | 254 | 318 | 17 | 254 | 315 | 2-f17 | 443.5 | - | 200 | 80 | f210 | f160 | 8-f18 |
| 100HWC2-11kVt | ||||||||||||||||||||
| 100HWC2-15kVt |
| Turi Turi |
Kuchlanishi Voltaj (V) |
Quvvat | Chiqish | Reyting oqimi Q.baholangan (m³/soat) |
Reyting. Oqim H.baholangan (m) |
MAX. OQIM Q.maks (m³/soat) |
MAX.BOSH H.maks (m) |
Posilka hajmi (sm) |
|
| (KVt) | (HP) | (mm) | |||||||
| 50HWC2-1,5 | 380V | 1.5 | 2 | 50 | 12 | 15 | 29 | 18 | 49*26*23 |
| 50HWC2-2.2 | 380V | 2.2 | 3 | 50 | 10 | 20 | 32 | 27 | 49*26*23 |
| 80HWC2-3.7 | 380V | 3.7 | 5.5 | 50 | 45 | 17 | 78 | 27 | 55*33*26 |
| 80HWC2-7,5 | 380V | 7.5 | 10 | 80 | 40 | 25 | 98 | 32 | 62*39*31 |
| 80HWC2-9.2 | 380V | 9.2 | 12.5 | 80 | 20 | 40 | 50 | 46 | 77*45*36 |
| 80HWC2-11 | 380V | 11 | 15 | 80 | 15 | 50 | 55 | 55 | 80*45*36 |
| 80HWC2-15 | 380V | 15 | 20 | 80 | 20 | 55 | 60 | 61 | 80*45*36 |
| 100HWC2-11 | 380V | 11 | 15 | 100 | 80 | 25 | 160 | 39 | |
| 100HWC2-15 | 380V | 15 | 20 | 100 | 80 | 30 | 161 | 42 | |
