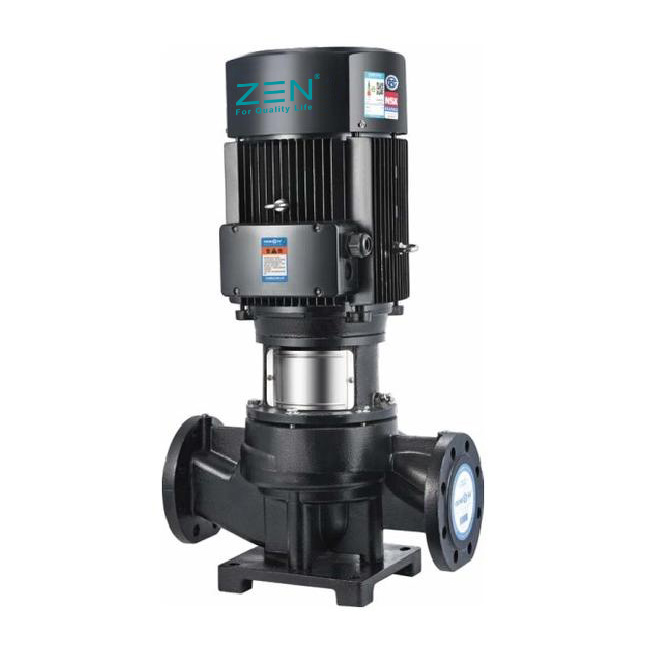

TD quvur liniyasi nasosi

Mahsulotga umumiy nuqtaiStandart motorlar va mexanik muhrlar bilan jihozlangan TD tipidagi bir bosqichli quvurli sirkulyatorlar, shunga o'xshash turdagi mahsulotlarga qaraganda, nasos suyuqliklaridagi aralashmalarga nisbatan kamroq zaif bo'lgan tuzilishga ega.
Mahsulot demontaj va yig'ish uchun mo'ljallangan bo'lib, u yuqoridan tortilishi mumkin va nasosni quvur tizimiga zarar bermasdan ta'mirlashi mumkin. Jumladan, TD32 - TD150 uzun o'q dizayni, TD200 - TD300 - yig'iladigan mexanik muhr yordamida demontaj qilinadigan dizayn, mexanik muhrni almashtirish dvigatelni demontaj qilishni talab qilmaydi.

So'rov yuborish

Mahsulot tavsifi

TD quvur liniyasi nasosi

asosiy maqsad

TD nasoslari ko'p maqsadli mahsulot bo'lib, turli xil muhitlarni musluk suvidan sanoat suyuqliklariga o'tkazishi mumkin va asosan suyuqliklarni tashish, nasos va aylanish uchun uskunalar sifatida ishlatiladi. Masalan, mintaqaviy isitish tizimi (isitish tizimining suv sifati umumiy qabul qilingan tizim suv sifati standartlariga javob berishi kerak) isitish, havoni tozalash tizimlari, sovutish tizimlari, maishiy issiq suv tizimlari, sanoat suyuqliklarni tashish, suv ta'minoti tizimlari.

foydalanish shartlari

Mahsulot suyultirilgan, toza, eroziv bo'lmagan, yonmaydigan va portlovchi suyuqliklar, qattiq zarralar, tolalar yoki suvga o'xshash fizik-kimyoviy xususiyatlarga ega suyuqliklarni tashish uchun mo'ljallangan. Suyuqlikning yopishqoqligi yoki zichligi yuqori bo'lgan muhitda foydalanish nasosning ishlashini pasayishiga va energiya sarfini oshirishga olib kelishi mumkin.

Maksimal ish bosimi: oddiy turdagi uchun 12 bar va maxsus turdagi uchun 16 bar

Suyuqlik harorati: - 15 ° C dan 110 ° C gacha

Atrof-muhit harorati: maksimal + 40 ° C

Balandligi: 1000 m gacha

Aylanish yo'nalishi: soat yo'nalishi bo'yicha (motor shamol pichog'ining uchi pastga qaragan)

Elektr dvigatel / dvigatel:

Elektr dvigateli to'liq yopiq, ikki kutupli va to'rt kutupli standart havo sovutgichli vosita.

Himoya klassi: IP55

Izolyatsiya sinfi: F

Standart kuchlanish: 50 Hz: 1 × 220 - 230 / 240 V

3×200 - 220 / 346 - 380V

3×220 - 240 / 380 - 415V

Oddiy tavsif

TD 50 - 24 G / 2

① TD: Quvurning aylanma nasosi

② 50: Kirish va chiqish suv quvurining diametri (mm)

③ 24: Nominal bosh (m)

④ G: Yangi avlod

⑤ 2: Elektrodlar soni

TD bir bosqichli quvur liniyasi aylanma nasosi

Variantlar

Ishlab chiqarish raqami	Nasos turi	Q (m³/soat)	H (m)	N (d/daq)	Standart dvigatel kuchlanishi (V)		Hajmi (mm)											Og'irligi (kg)
Ishlab chiqarish raqami	Nasos turi	Q (m³/soat)	H (m)	N (d/daq)	1×220V P2 (KVt)	3×380V P2 (KVt)	D	B1	B2	B3	B4	B5	H1	H2	H3	L1	L2	Og'irligi (kg)
1	TD32-14G/2	8	14	2900	0.75	0.75	120	151	125	101	101	144	90	135	469	320	160	33
2	TD32-18G/2	8	18		1.1	1.1	120	151	125	101	101	144	90	135	469	320	160	34
3	TD32-21G/2	12.5	21		1.5	1.5	140	171	137	101	101	144	90	137	514	320	160	38
4	TD32-26G/2	12.5	26		2.2	2.2	140	171	137	101	101	144	90	137	514	320	160	42
5	TD32-33G/2	12.5	33			3	160	196	150	109	109	144	90	145	572	340	170	52
6	TD32-40G/2	12.5	40			4	160	214	169	128	128	144	100	151	593	360	180	65
7	TD32-50G/2	12.5	50			5.5	200	257	190	128	128	144	100	173	656	360	180	84
8	TD40-14G/2	8	14		0.75	0.75	122	151	125	98	95	120	68	139	451	320	160	31
9	TD40-16G/2	12.5	16		1	1.1	122	151	125	98	95	120	68	139	451	320	160	32
10	TD40-21G/2	12.5	21		1.5	1.5	140	171	137	98	95	120	68	149	504	320	160	38
11	TD40-20G/2	20	20		2.2	2.2	140	171	137	105	95	144	85	144	516	320	160	43
12	TD40-26G/2	20	26			3	160	196	150	116	109	144	85	156	578	340	170	54
13	TD40-30G/2	25	30			4	160	214	169	116	109	144	85	156	583	340	170	62
14	TD40-36G/2	25	36			5.5	200	257	190	133	128	144	90	181	654	380	190	85
15	TD40-48G/2	25	48			7.5	200	257	190	133	128	144	90	181	654	380	190	94
16	TD50-32G/2	12.5	32			3	160	196	150	128	128	144	105	150	592	400	200	64
17	TD50-39G/2	12.5	39			4	160	214	169	128	128	144	105	150	597	400	200	71
18	TD50-49G/2	12.5	49			5.5	200	257	190	128	128	144	105	172	660	400	200	88
19	TD50-59G/2	12.5	59			7.5	200	257	190	163	163	144	105	178	666	440	220	112
20	TD50-80G/2	12.5	80			11	350	314	261	163	163	144	105	222	783	440	220	184
21	TD50-12G/2	16	12		1.1	1.1	120	151	125	114	101	144	105	135	484	340	170	37
22	TD50-15G/2	20	15		1.5	1.5	140	171	137	114	101	144	105	137	529	340	170	42
23	TD50-18G/2	25	18		2.2	2.2	140	171	137	114	101	144	105	137	529	340	170	45
24	TD50-24G/2	25	24			3	160	196	150	114	101	144	105	147	589	340	170	55
25	TD50-28G/2	30	28			4	160	214	169	118	109	144	105	152	599	340	170	64
26	TD50-35G/2	30	35			5.5	200	257	190	118	109	144	105	175	663	340	170	81
27	TD50-40G/2	35	40			7.5	200	257	190	142	138	144	105	175	663	400	200	98
28	TD50-50G/2	40	50			11	350	314	261	142	138	144	105	225	830	400	200	173
29	TD50-60G/2	50	60			15	350	314	261	171	163	144	115	225	840	440	220	196
30	TD50-70G/2	50	70			18.5	350	314	261	171	163	144	115	225	884	440	220	203
31	TD50-81G/2	50	81			22	350	355	273	171	163	144	115	225	917	440	220	256
32	TD65-37G/2	25	37			5.5	200	257	190	128	128	144	105	180	668	400	200	90
33	TD65-48G/2	25	48			7.5	200	257	190	128	128	144	105	180	668	400	200	98
34	TD65-15G/2	30	15		2.2	2.2	140	171	137	116	101	144	105	153	545	340	170	48
35	TD65-20G/2	30	20			3	160	196	150	116	101	144	105	163	605	340	170	57
36	TD65-22G/2	40	22			4	160	214	169	116	101	144	105	163	610	340	170	64
37	TD65-30G/2	40	30			5.5	200	257	190	131	115	144	105	194	682	360	180	85
38	TD65-34G/2	50	34			7.5	200	257	190	131	115	144	105	194	682	360	180	94

Ishlab chiqarish raqami	Nasos turi	Q (m³/soat)	H (m)	N (d/daq)	Standart dvigatel kuchlanishi (V)		Hajmi (mm)											Og'irligi (kg)
Ishlab chiqarish raqami	Nasos turi	Q (m³/soat)	H (m)	N (d/daq)	1×220V P2 (KVt)	3×380V P2 (KVt)	D	B1	B2	B3	B4	B5	H1	H2	H3	L1	L2	Og'irligi (kg)
39	TD65-41G/2	50	41	2900		11	350	314	261	148	138	144	105	234	839	400	200	173
40	TD65-51G/2	50	51			15	350	314	261	148	138	144	105	234	839	400	200	188
41	TD65-61G/2	50	61			18.5	350	314	261	174	162	160	125	228	897	475	238	208
42	TD65-68G/2	50	68			22	350	355	273	174	162	160	125	228	930	475	238	260
43	TD65-85G/2	50	85			30	400	397	314	174	162	160	125	231	1008	475	238	322
44	TD80-41G/2	50	41			11	350	314	261	137	128	144	115	221	836	500	250	176
45	TD80-48G/2	50	48			15	350	314	261	137	128	144	115	221	836	500	250	191
46	TD80-13G/2	50	13		2.2	3	160	196	150	134	112	144	105	171	613	400	200	63
47	TD80-18G/2	50	18			4	160	214	169	134	112	144	105	171	618	400	200	70
48	TD80-23G/2	50	23			5.5	200	257	190	134	112	144	105	195	683	400	200	87
49	TD80-29G/2	50	29			7.5	200	257	190	134	112	144	105	195	683	400	200	95
50	TD80-32G/2	70	32			11	350	314	261	159	138	144	115	240	855	450	225	179
51	TD80-38G/2	80	38			15	350	314	261	159	138	144	115	240	855	450	225	194
52	TD80-47G/2	80	47			18.5	350	314	261	159	138	144	115	240	899	450	225	203
53	TD80-54G/2	80	54			22	350	355	273	159	138	144	115	240	932	450	225	256
54	TD80-67G/2	80	67			30	400	397	314	180	162	160	115	242	1017	500	250	324
55	TD100-9/2	50	9			2.2	140	171	137	134	101	160	105	178	570	450	225	56
56	TD100-15/2	60	15			4	160	214	169	134	101	160	105	190	637	450	225	73
57	TD100-17G/2	80	17			5.5	200	257	190	146	118	144	120	199	702	450	225	96
58	TD100-22G/2	80	22			7.5	200	257	190	146	118	144	120	199	702	450	225	104
59	TD100-27/2	100	27			11	350	314	261	147	123	144	140	260	900	550	275	187
60	TD100-33/2	100	33			15	350	314	261	147	123	144	140	260	900	550	275	202
61	TD100-40G/2	100	40			18.5	350	314	261	181	152	230	140	270	954	550	275	220
62	TD100-48G/2	100	48			22	350	355	273	181	152	230	140	270	987	550	275	273
63	TD100-52G/2	130	52			30	400	397	314	181	152	230	140	270	1062	550	275	336
64	TD125-11G/4	120	11	1450		5.5	200	257	190	198	162	230	160	229	772	620	310	140
65	TD125-14G/4	120	14	1450		7.5	200	257	190	198	162	230	160	229	772	620	310	150
66	TD125-19G/4	140	19	1450		11	350	314	261	213	178	230	160	301	961	660	330	255
67	TD125-22G/4	160	22			15	350	314	261	236	208	230	215	292	1051	800	400	310
68	TD125-28G/4	160	28			18.5	350	355	273	236	208	230	215	292	1084	800	400	340
69	TD125-32G/4	160	32			22	350	355	273	236	208	230	215	292	1122	800	400	361
70	TD125-40G/4	160	40			30	400	397	314	261	233	230	160	298	1110	800	400	455
71	TD125-48G/4	160	48			37	400	445	334	261	233	230	160	313	1167	800	400	492
72	TD150-12.5G/4	200	12.5			11	350	314	261	217	180	230	175	297	972	660	330	260
73	TD150-17G/4	200	17			15	350	314	261	217	180	230	175	297	1016	660	330	281
74	TD150-22G/4	200	22			18.5	350	355	273	217	180	230	175	297	1049	660	330	312
75	TD150-25/4	200	25			22	350	355	273	238	208	230	215	269	1061	800	400	365
76	TD150-33/4	200	33			30	400	397	314	238	208	230	215	269	1136	800	400	445

Ishlab chiqarish raqami	Nasos turi	Q (m³/soat)	H (m)	N (d/daq)	Dvigatelning standart kuchlanishi (V)		Hajmi (mm)											Og'irligi (kg)
Ishlab chiqarish raqami	Nasos turi	Q (m³/soat)	H (m)	N (d/daq)	1×220V P2 (KVt)	3×380V P2 (KVt)	D	B1	B2	B3	B4	B5	H1	H2	H3	L1	L2	Og'irligi (kg)
77	TD150-40/4	200	40	1450		37	450	445	334	267	248	230	230	288	1212	900	450	518
78	TD150-50/4	200	50			45	450	445	334	267	248	230	230	288	1212	900	450	570
79	TD200-16/4	300	16			18.5	350	355	273	278	219	360	270	415	1265	1000	500	417
80	TD200-19 / 4	300	19			22	350	355	273	278	219	360	270	415	1305	1000	500	434
81	TD200-24/4	300	24			30	400	397	314	303	252	360	270	415	1335	1100	550	537
82	TD200-31/4	300	31			37	450	445	334	303	252	360	270	445	1395	1100	550	602
83	TD200-36/4	300	36			45	450	445	334	303	252	360	270	445	1420	1100	550	648
84	TD200-47/4	300	47			55	550	484	367	315	269	360	270	457	1517	1100	550	744
85	TD200-53 / 4	300	53			75	550	547	407	315	269	360	270	457	1587	1100	550	877
86	TD200-12.5/4	400	12.5			22	350	355	273	278	219	360	270	415	1300	1000	500	432
87	TD200-20/4	400	20			30	400	397	314	278	219	360	270	415	1334	1000	500	492
88	TD200-23/4	400	23			37	450	445	334	303	252	360	270	445	1389	1100	550	602
89	TD200-27 / 4	400	27			45	450	445	334	303	252	360	270	445	1412	1100	550	638
90	TD200-32/4	400	32			55	550	484	367	303	252	360	270	445	1488	1100	550	710
91	TD200-43/4	400	43			75	550	547	407	315	269	360	270	457	1556	1100	550	883
92	TD200-50/4	400	50			90	550	547	407	315	269	360	270	457	1607	1100	550	975
93	TD250-16 / 4	500	16			30	400	397	314	316	243	390	300	465	1430	1100	550	550
94	TD250-19/4	500	19			37	450	445	334	316	243	390	300	495	1475	1100	550	611
95	TD250-22/4	500	22			45	450	445	334	316	243	390	300	495	1500	1100	550	647
96	TD250-29/4	500	29			55	550	484	367	329	264	440	300	507	1597	1100	550	773
97	TD250-36/4	500	36			75	550	547	407	329	264	440	300	507	1667	1100	550	909

98	TD250-47/4	500	47			90	550	547	407	347	292	440	305	485	1700	1200	600	1030
99	TD250-56/4	500	56			110	660	645	535	347	292	440	305	525	1860	1200	600	1389

100	TD250-12.5/4	630	12.5			30	400	397	314	316	243	390	300	465	1414	1100	550	552
101	TD250-14/4	630	14			37	450	445	334	316	243	390	300	495	1469	1100	550	613
102	TD250-17/4	630	17			45	450	445	334	316	243	390	300	495	1492	1100	550	649
103	TD250-20/4	630	20			55	550	484	367	316	243	390	300	495	1568	1100	550	722
104	TD250-26/4	630	26			75	550	547	407	329	264	440	300	507	1636	1100	550	909
105	TD250-32/4	630	32			90	550	547	407	329	264	440	300	507	1687	1100	550	999
106	TD250-40/4	630	40			110	660	645	535	347	292	440	305	525	1840	1200	600	1389
107	TD250-50/4	630	50			132	660	645	535	347	292	440	305	525	1990	1200	600	1473
108	TD300-15/4	900	15			55	550	484	367	345	250	440	290	649	1720	1200	600	907
109	TD300-20/4	900	20			75	550	547	407	345	250	440	290	649	1770	1200	600	1075
110	TD300-25/4	900	25			90	550	547	407	380	280	480	290	659	1850	1200	600	1230
111	TD300-30/4	900	30			110	660	645	535	380	280	480	290	699	2000	1200	600	1570
112	TD300-35/4	900	35			132	660	645	535	380	280	480	290	699	2150	1200	600	1650
113	TD300-44/4	900	44			160	660	645	535	380	295	480	290	702	2150	1200	600	1790
114	TD300-55/4	900	55			200	660	645	535	380	295	480	290	702	2150	1200	600	1905

Ishlab chiqarish raqami	Mahsulot turi	Plitka turi	Ishlab chiqarish raqami	Mahsulot turi	Plitka turi	Ishlab chiqarish raqami	Mahsulot turi	Plitka turi
1	TD32-14G/2	A	27	TD50-40G/2	A	53	TD80-54G/2	A
2	TD32-18G/2	A	28	TD50-50G/2	A	54	TD80-67G/2	A
3	TD32-21G/2	A	29	TD50-60G/2	A	55	TD100-9/2	A
4	TD32-26G/2	A	30	TD50-70G/2	A	56	TD100-15/2	A
5	TD32-33G/2	A	31	TD50-81G/2	A	57	TD100-17G/2	A
6	TD32-40G/2	A	32	TD65-37G/2	A	58	TD100-22G/2	A
7	TD32-50G/2	A	33	TD65-48G/2	A	59	TD100-27/2	A
8	TD40-14G/2	A	34	TD65-15G/2	A	60	TD100-33/2	A
9	TD40-16G/2	A	35	TD65-20G/2	A	61	TD100-40G/2	B
10	TD40-21G/2	A	36	TD65-22G/2	A	62	TD100-48G/2	B
11	TD40-20G/2	A	37	TD65-30G/2	A	63	TD100-52G/2	B
12	TD40-26G/2	A	38	TD65-34G/2	A	64	TD125-11G/4	B
13	TD40-30G/2	A	39	TD65-41G/2	A	65	TD125-14G/4	B
14	TD40-36G/2	A	40	TD65-51G/2	A	66	TD125-19G/4	B
15	TD40-48G/2	A	41	TD65-61G/2	A	67	TD125-22G/4	B
16	TD50-32G/2	A	42	TD65-68G/2	A	68	TD125-28G/4	B
17	TD50-39G/2	A	43	TD65-85G/2	A	69	TD125-32G/4	B
18	TD50-49G/2	A	44	TD80-41G/2	A	70	TD125-40G/4	B
19	TD50-59G/2	A	45	TD80-48G/2	A	71	TD125-48G/4	B
20	TD50-80G/2	A	46	TD80-13G/2	A	72	TD150-12.5G/4	B
21	TD50-12G/2	A	47	TD80-18G/2	A	73	TD150-17G/4	B
22	TD50-15G/2	A	48	TD80-23G/2	A	74	TD150-22G/4	B
23	TD50-18G/2	A	49	TD80-29G/2	A	75	TD150-25/4	B
24	TD50-24G/2	A	50	TD80-32G/2	A	76	TD150-33/4	B
25	TD50-28G/2	A	51	TD80-38G/2	A	77	TD150-40/4	B
26	TD50-35G/2	A	52	TD80-47G/2	A	78	TD150-50/4	B

Hot Tags: TD quvur nasosi, Xitoy, ishlab chiqaruvchi, yetkazib beruvchi, zavod, moslashtirilgan, sifat, so'nggi sotuvlar, stokda, brendlar, Idoralar, Taizhou

Mahsulot yorlig'i

So'rov yuborish

Iltimos, so'rovingizni quyidagi shaklda berishingiz mumkin. Sizga 24 soat ichida javob beramiz.

Mahsulotlar

Yangi mahsulotlar

TD quvur liniyasi nasosi

Mahsulot tavsifi

TD quvur liniyasi nasosi

asosiy maqsad

foydalanish shartlari

Oddiy tavsif

TD bir bosqichli quvur liniyasi aylanma nasosi

Variantlar

Mahsulot yorlig'i

Tegishli toifa

So'rov yuborish

Tegishli mahsulotlar
