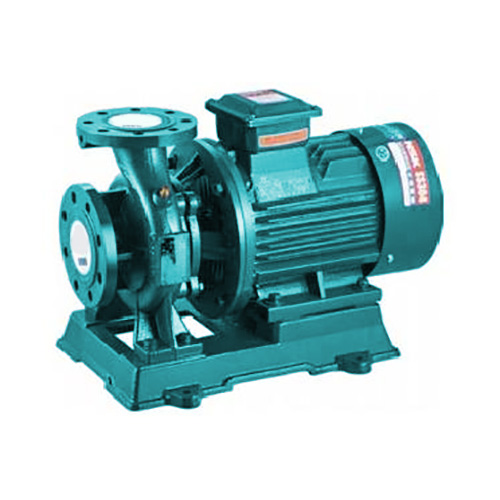

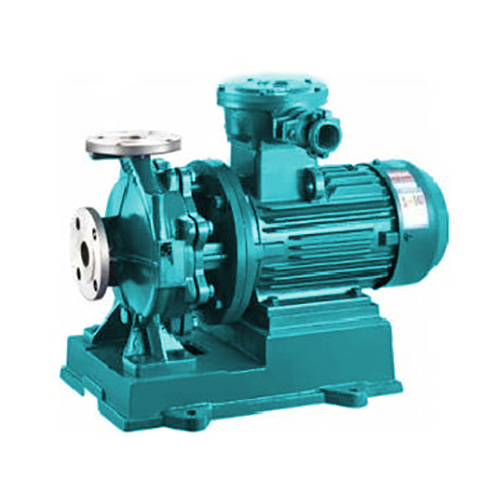

IRG ISW ISWB quvur liniyasi nasosi
  • IRG ISW ISWB quvur liniyasi nasosiIRG ISW ISWB quvur liniyasi nasosi
  • IRG ISW ISWB quvur liniyasi nasosiIRG ISW ISWB quvur liniyasi nasosi
  • IRG ISW ISWB quvur liniyasi nasosiIRG ISW ISWB quvur liniyasi nasosi

IRG ISW ISWB quvur liniyasi nasosi

IRG ISW ISWB quvur liniyasi nasosiFoydalanish shartlari / Foydalanish shartlari:1. Nasos tizimining maksimal bosimi 1,6 MPa, ya'ni. nasosning kirish bosimi + nasos bosimi 1,6 MPa. (Buyurtma berishda, iltimos, tizimning ish bosimini ko'rsating, nasos tizimining ish bosimi 1,6 MPa dan ortiq, b......

So'rov yuborish

Mahsulot tavsifi

IRG ISW ISWB quvur liniyasi nasosi

Foydalanish shartlari / Foydalanish shartlari:

1. Nasos tizimining maksimal bosimi 1,6 MPa, ya'ni. nasosning kirish bosimi + nasos bosimi 1,6 MPa. (Buyurtma berishda, iltimos, tizimning ish bosimini ko'rsating, nasos tizimining ish bosimi 1,6 MPa dan ortiq, buyurtma berishda alohida ko'rsatilishi kerak. Nasosning oqadigan va birlashtiruvchi qismlari ishlab chiqarish vaqtida quyma temirdan yasalgan.)

2. Qo'llaniladigan muhit: hajm birligi uchun 0,1% dan ko'p bo'lmagan va zarracha hajmi 0,2 mm dan oshmaydigan qattiq erimaydigan modda (nozik zarrachalari bo'lgan vosita aşınmaya bardoshli mexanik sızdırmazlık bo'lishi kerak, buyurtma berishda ko'rsating).

3. Atrof-muhit harorati 40 ° C dan oshmaydi, nisbiy harorat 95 ° C dan oshmaydi, balandlik 1000 m dan oshmaydi.


Model/modelning ta'siri:

IRG 50 - 160 - 3

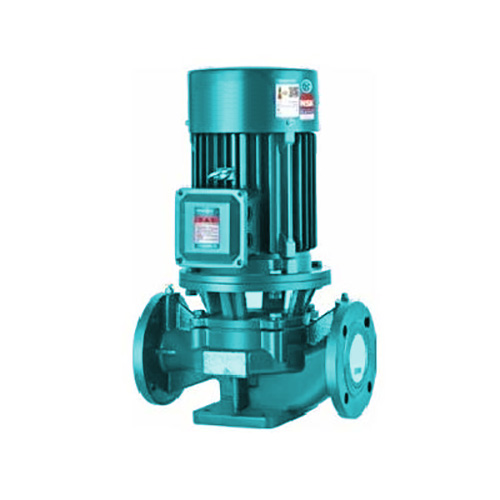

① IRG: vertikal quvur nasosi

② 50: kalibr (mm)

③ 160: pervanel diametri (mm)

④ 3: Quvvat (kVt)


Texnik parametrlar / o'rnatish o'lchamlari

Turi Q oqimi harakat
m 		Samaradorlik
(%)		 Sinxronizatsiya
Aylanish tezligi
rpm		 Elektr dvigateli
Quvvat
KVt		 majburiy kavitatsiya zahirasi
（m）		 Vertikal yozishni sozlash Gorizontal nasos o'lchami Flanj o'lchami Vibratsiyali izolyatsiya H1
m³/soat L/S H L h B C H h a L1 L L2 B1 D D1 n-d Spetsifikatsiya
25-125 2.8
4
5.2 		0.78
1.11
1.44 		20.6
20
18 		28
36
35 		2900 0.75 2.3 430 275 70 80 50 320 180 90 405 445 210 260 f115 f85 4-f16 SD41-0,5 20
25-125A 2.5
3.6
4.6 		0.69
1.0
1.28 		17
16
14.4 		27
35
34 		2900 0.75 2.3 430 275 70 80 50 320 180 90 405 445 210 260 f115 f85 4-f16 SD41-0,5 20
25-160 2.8
4
5.2 		0.78
1.11
1.44 		33
32
30 		24
32
33 		2900 1.5 2.3 455 320 75 100 60 320 180 90 440 470 250 300 f115 f85 4-f16 SD41-0,5 20
25-160A 2.6
3.7
4.9 		0.72
1.03
1.36 		29
28
26 		22
31
32 		2900 1.1 2.3 440 320 75 100 60 320 180 90 440 455 250 300 f115 f85 4-f16 SD41-0,5 20
32-125 3.5
5
6.5 		0.97
1.39
1.8 		22
20
18 		40 44
42 		2900 0.75 2.3 445 270 75 100 60 320 180 90 440 455 250 310 f140 ph100 4-f16 SD41-0,5 20
32-125A 3.1
4.5
5.8 		0.86
1.25
1.61 		17.6
16
14.4 		38
42
40 		2900 0.75 2.3 445 270 75 100 60 320 180 90 440 455 250 310 f140 ph100 4-f16 SD41-0,5 20


Turi Q oqimi harakat
m 		Samaradorlik
(%)		 Sinxronizatsiya
Aylanish tezligi
rpm		 Elektr dvigateli
Quvvat
KVt		 majburiy kavitatsiya zahirasi
（m）		 Vertikal yozishni sozlash Gorizontal nasos o'lchami Flanj o'lchami Vibratsiyali izolyatsiya H1
m³/soat L/S H L h B C H h a L1 L L2 B1 D D1 n-d Spetsifikatsiya
40-100 4.4
6.3
8.3 		1.22
1.75
2.31 		13.2
12.5
11.3 		48
54
53 		2900 0.75 2.3 410 270 85 120 70 260 145 95 405 460 260 125 f150 f110 4-f18 SD41-0,5 20
40-100A 3.9
5.6
7.4 		1.08
1.56
2.06 		10.6
10
9 		45
52
50 		2900 0.75 2.3 410 270 85 120 70 260 145 95 405 460 260 125 f150 f110 4-f18 SD41-0,5 20
40-125 4.4
6.3
8.3 		1.22
1.75
2.31 		21
20
18 		41
46
43 		2900 1.1 2.3 410 285 85 120 70 305 165 80 405 445 210 260 f150 f110 4-f18 SD41-0,5 20
40-125A 3.9
5.6
7.4 		1.08
1.56
2.06 		17.6
16
14.4 		40
45
41 		2900 0.75 2.3 410 285 85 120 70 305 165 80 405 445 210 260 f150 f110 4-f18 SD41-0,5 20
40-160 4.4
6.3
8.3 		1.22
1.75
2.31 		33
32
30 		35 40
40 		2900 2.2 2.3 445 325 80 120 70 375 210 85 455 489 250 310 f150 f110 4-f18 SD41-0,5 20
40-160A 4.1
5.9
7.8 		1.44
1.64
2.17 		29
28
26.3 		34
39
39 		2900 1.5 2.3 420 325 80 120 70 375 210 85 455 465 250 310 f150 f110 4-f18 SD41-0,5 20
40-160B 3.8
5.5
7.2 		1.06
1.53
2.0 		25.5
24
225 		34
38
37 		2900 1.1 2.3 405 325 80 120 70 370 205 85 455 450 210 260 f150 f110 4-f18 SD41-0,5 20


Turi Q oqimi harakat
m 		Samaradorlik
(%)		 Sinxronizatsiya
Aylanish tezligi
rpm		 Elektr dvigateli
Quvvat
KVt		 Majburiy kavitatsiya
Qolgan
(m)		 Vertikal nasoslarni o'rnatish Gorizontal nasos o'lchami Flanj o'lchami Vibratsiyali izolyatsiya H1
m³/soat L/S H L h B C H h a L1 L L2 B1 D D1 n-d Spetsifikatsiya
40-200 4.4
6.3
8.3 		1.22
1.75
2.31 		51
50
48 		26
33
32 		2900 4 2.3 525 345 70 130 80 405 230 85 490 560 300 350 f150 f110 4-f18 SD41-0,5 20
40-200A 4.1
5.9
7.8 		1.14
1.64
2.17 		45
44
42 		26
31
30 		2900 3 2.3 495 345 70 130 80 405 230 85 490 530 300 350 f150 f110 4-f18 SD41-0,5 20
40-200B 3.7
5.3
7.0 		1.08
1.47
1.94 		38
36
34.5 		23
29
24 		2900 2.2 2.3 470 345 90 130 80 395 220 85 455 505 280 310 f150 f110 4-f18 SD41-0,5 20
40-250 4.4
6.3
8.3 		1.22
1.75
2.31 		82
80
75 		24
28
28 		2900 7.5 2.3 580 405 100 130 80 455 255 80 540 625 340 380 f150 f110 4-f18 SD41-0,5 20
40-250A 4.1
5.9
7.8 		1.14
1.64
2.17 		72
70
65 		24
28
27 		2900 5.5 2.3 580 405 100 130 80 455 255 80 540 625 340 380 f150 f110 4-f18 SD41-0,5 20
40-250B 3.8
5.5
7.0 		1.06
1.53
1.94 		61.5
60
56 		23
27
26 		2900 4 2.3 535 405 100 130 80 455 255 80 540 570 340 380 f150 f110 4-f18 SD41-0,5 20
40-100 (I) 8.8
12.5
16.3 		2.44
3.47
4.53 		13.2
12.5
11.3 		55
62
60 		2900 1.1 2.3 420 300 95 120 70 290 145 80 405 470 210 260 f150 f110 4-f18 SD41-0,5 20


Turi Q oqimi harakat
m 		Samaradorlik
(%)		 Sinxronizatsiya
Aylanish tezligi
rpm		 Elektr dvigateli
Quvvat
KVt		 majburiy kavitatsiya zahirasi
（m）		 Vertikal yozishni sozlash Gorizontal nasos o'lchami Flanj o'lchami Vibratsiyali izolyatsiya H1
m³/soat L/S H L h B C H h a L1 L L2 B1 D D1 n-d Spetsifikatsiya
40-100(I)A 8
11
14.5 		2.22
3.05
4.06 		10.6
10
9 		52
60
56 		2900 0.75 2.3 420 300 95 120 70 290 145 80 405 470 210 260 f150 f110 4-f18 SD41-0,5 20
40-125 (I) 8.8
12.6
16.3 		2.44
3.47
4.53 		21.2
20
17.8 		49
58
57 		2900 1.5 2.3 430 305 90 120 70 320 170 90 440 480 250 300 f150 f110 4-f18 SD41-0,5 20
40-125(I)A 8
11
14.5 		2.22
3.05
4.03 		17
16
14 		47
57
54 		2900 1.1 2.3 415 305 90 120 70 315 165 90 440 465 210 260 f150 f110 4-f18 SD41-0,5 20
40-160 (I) 8.8
12.5
16.3 		2.44
3.47
4.53 		33
32
30 		45
52
52 		2900 3.0 2.3 505 325 100 130 80 380 220 85 485 540 280 320 f150 f110 4-f18 SD41-0,5 20
40-160(I)A 8.2
11.7
15.2 		2.28
3.25
4.22 		29
28
26 		44
41
50 		2900 2.2 2.3 465 325 100 130 80 380 220 85 455 495 280 310 f150 f110 4-f18 SD41-0,5 20
40-160(I)B 7.8
10.4
13.5 		2.38
2.89
3.75 		23
22
20.5 		44
49
47 		2900 1.5 2.3 440 325 100 130 80 380 220 85 455 495 280 310 f150 f110 4-f18 SD41-0,5 20


Turi Q oqimi harakat
m 		Samaradorlik
(%)		 Sinxronizatsiya
Aylanish tezligi
rpm		 Elektr dvigateli
Quvvat
KVt		 majburiy kavitatsiya zahirasi
（m）		 Vertikal yozishni sozlash Gorizontal nasos o'lchami Flanj o'lchami Vibratsiyali izolyatsiya H1
m³/soat L/S H L h B C H h a L1 L L2 B1 D D1 n-d Spetsifikatsiya
40-200 (I) 8.8
12.5
16.3 		2.44
3.47
4.53 		51.2
50
48 		38
46
46 		2900 5.5 2.3 580 345 95 130 80 400 220 100 535 590 340 340 f150 f110 4-f18 SD41-0,5 20
40-200(I)A 8.3
11.7
15.3 		2.31
3.25
4.25 		45
44
42 		37
45
45 		2900 4 2.3 530 345 95 130 80 400 220 100 490 580 300 340 f150 f110 4-f18 SD41-0,5 20
40-200(I)B 7.5
10.6
13.8 		2.08
2.94
3.83 		37
36
34 		35
44
42 		2900 3 2.3 500 345 95 130 80 410 230 100 490 550 300 340 f150 f110 4-f18 SD41-0,5 20
40-250 (I) 8.8
12.5
16.3 		2.44
3.47
4.53 		81.2
80
77.5 		31
38
40 		2900 11 2.3 675 440 100 160 100 495 270 100 640 735 430 430 f150 f110 4-f18 SD41-0,5 20
40-250(I)A 8.2
11.6
15.2 		2.28
3.22
4.22 		71
70
68 		28
38
39 		2900 7.5 2.3 585 440 100 160 100 480 255 100 540 645 340 380 f150 f110 4-f18 SD41-0,5 20
40-250(I)B 7.6
10.8
14 		2.11
3
3.89 		61.4
60
58 		28
37
37 		2900 7.5 2.3 585 440 100 160 100 480 255 100 540 645 340 380 f150 f110 4-f18 SD41-0,5 20


Turi Q oqimi harakat
m 		Samaradorlik
(%)		 Sinxronizatsiya
Aylanish tezligi
rpm		 Elektr dvigateli
Quvvat
KVt		 majburiy kavitatsiya zahirasi
（m）		 Vertikal yozishni sozlash Gorizontal nasos o'lchami Flanj o'lchami Vibratsiyali izolyatsiya H1
m³/soat L/S H L h B C H h a L1 L L2 B1 D D1 n-d Spetsifikatsiya
40-250 (I) S 7.1
10
13.1 		1.97
2.78
3.64 		53.2
52
50.4 		26
36
35 		2900 5.5 2.3 585 440 100 160 100 480 255 100 540 645 340 380 f150 f110 4-f18 SD41-0,5 20
50-100 8.8
12.5
16.3 		2.44
3.47
4.53 		13.6
12.5
11.3 		55
62
60 		2900 1.1 2.3 420 300 95 120 70 290 145 80 405 470 210 260 f165 f125 4-f18 SD41-0,5 20
50-100A 8
11
14.5 		2.22
3.05
4.03 		11
10
9 		52
60
56 		2900 0.75 2.3 420 300 95 120 70 290 145 80 405 470 210 260 f165 f125 4-f18 SD41-0,5 20
50-125 8.8
12.5
16.3 		2.44
3.47
4.53 		21.5
20
17.8 		49
58
57 		2900 1.5 2.3 430 305 90 120 70 320 170 90 440 480 250 300 f165 f125 4-f18 SD41-0,5 20
50-125A 8
11
14.5 		2.22
3.05
4.03 		17
16
14 		47
57
54 		2900 1.1 2.3 415 305 90 120 70 315 165 90 405 465 210 260 f165 f125 4-f18 SD41-0,5 20
50-160 8.8
12.5
16.3 		2.44
3.47
4.53 		33
32
30 		45
52
51 		2900 3 2.3 505 325 100 130 80 385 220 85 485 535 280 320 f165 f125 4-f18 SD41-0,5 20
50-160A 8.2
11.7
15.2 		2.28
3.25
4.22 		29
28
26 		44
51
50 		2900 2.2 2.3 465 325 100 130 80 385 220 85 455 495 280 310 f165 f125 4-f18 SD41-0,5 20


Turi Q oqimi harakat
m 		Samaradorlik
(%)		 Sinxronizatsiya
Aylanish tezligi
rpm		 Elektr dvigateli
Quvvat
KVt		 majburiy kavitatsiya zahirasi
（m）		 Vertikal yozishni sozlash Gorizontal nasos o'lchami Flanj o'lchami Vibratsiyali izolyatsiya H1
m³/soat L/S H L h B C H h a L1 L L2 B1 D D1 n-d Spetsifikatsiya
50-160B 7.3
10.4
13.5 		2.38
2.89
2.75 		23
22
20.5 		42
49
47 		2900 1.5 2.3 440 325 100 130 80 385 220 85 455 470 280 310 f165 f125 4-f18 SD41-0,5 20
50-200 8.8
12.5
16.3 		2.44
3.47
4.53 		52
45
45 		38
46
46 		2900 5.5 2.3 580 345 95 130 80 400 220 85 535 635 340 340 f165 f125 4-f18 SD41-0,5 20
50-200A 8.3
11.7
15.3 		2.31
3.25
4.25 		45.8
44
42 		37
45
45 		2900 4 2.3 530 345 95 130 80 400 220 85 490 580 300 340 f165 f125 4-f18 SD41-0,5 20
50-200B 7.5
10.6
13.8 		2.08
2.94
3.83 		37
36
34 		35
44
42 		2900 3 2.3 500 345 100 130 80 400 220 85 490 555 300 340 f165 f125 4-f18 SD41-0,5 20
50-250 8.8
12.5
16.3 		2.44
3.47
4.53 		82
80
77.5 		29
25
40 		2900 11 2.3 685 445 110 160 100 495 270 100 640 735 430 430 f165 f125 4-f18 SD41-0,5 20
50-250A 8.2
11.6
15.2 		2.28
3.22
4.22 		71.5
70
68 		28
38
39 		2900 7.5 2.3 595 445 110 160 100 480 255 100 540 645 340 380 f165 f125 4-f18 SD41-0,5 20


Turi Q oqimi harakat
m 		Samaradorlik
(%)		 Sinxronizatsiya
Aylanish tezligi
rpm		 Elektr dvigateli
Quvvat
KVt		 majburiy kavitatsiya zahirasi
（m）		 Vertikal yozishni sozlash Gorizontal nasos o'lchami Flanj o'lchami Vibratsiyali izolyatsiya H1
m³/soat L/S H L h B C H h a L1 L L2 B1 D D1 n-d Spetsifikatsiya
50-250B 7.6
10.8
14 		2.11
3
3.89 		61.4
60
58 		28
37
37 		2900 7.5 2.3 595 445 110 160 100 480 255 100 540 645 340 380 f165 f125 4-f18 SD41-0,5 20
50-250C 7.1
10
13.1 		1.97
2.78
3.64 		53.2
52
50.4 		26
36
35 		2900 5.5 2.3 595 445 110 160 100 480 255 100 540 645 340 380 f165 f125 4-f18 SD41-0,5 20
50-100 (I) 17.5
25 		4.86
6.94 		13.7
12.5 		67
69 		2900 1.5 2.5 440 320 100 160 100 370 210 95 440 510 300 350 f165 f125 4-f18 SD41-0,5 20
50-100(I)A 15.6
22.3
29 		4.3
6.19
8.1 		11
10
8.4 		65
67
68 		2900 1.1 2.5 425 320 100 160 100 370 210 95 440 470 250 300 f165 f125 4-f18 SD41-0,5 20
50-125 (I) 17.5
25
32.5 		4.86
6.94
9.03 		21.5
20
18 		60
68
67 		2900 3 2.5 480 345 105 160 100 365 220 105 455 555 280 310 f165 f125 4-f18 SD41-0,5 20
50-125(I)A 15.6
22.3 		4.33
6.19 		17
16 		58
66 		2900 2.2 2.5 480 345 105 160 100 365 220 105 455 515 280 310 f165 f125 4-f18 SD41-0,5 20
50-160 (I) 17.5
25
32.5 		4.86
6.94
9.03 		34.4
32
27.5 		54
63
60 		2900 4 2.5 540 365 105 160 100 405 230 80 505 665 280 350 f165 f125 4-f18 SD41-0,5 20


Turi Q oqimi harakat
m 		Samaradorlik
(%)		 Sinxronizatsiya
Aylanish tezligi
rpm		 Elektr dvigateli
Quvvat
KVt		 majburiy kavitatsiya zahirasi
（m）		 Vertikal yozishni sozlash Gorizontal nasos o'lchami Flanj o'lchami Vibratsiyali izolyatsiya H1
m³/soat L/S H L h B C H h a L1 L L2 B1 D D1 n-d Spetsifikatsiya
50-160(I)A 16.4
23.4
30.4 		4.56
6.5
8.44 		30
28
24 		54
52
59 		2900 4 2.3 540 365 105 160 100 405 230 80 505 665 300 350 f165 f125 4-f18 SD41-0,5 20
50-160(I)B 15
21.6
28 		4.17
6
7.78 		26
24
20.6 		49
58
54 		2900 3 2.3 510 365 105 160 100 405 230 85 505 640 300 350 f165 f125 4-f18 SD41-0,5 20
50-200 (I) 17.5
25
32.5 		4.86
6.94
9.03 		52.7
50
45.5 		49
58
59 		2900 7.5 2.3 595 390 105 160 100 405 220 100 535 640 340 340 f165 f125 4-f18 SD41-0,5 20
50-200(I)A 16.4
23.5
30.5 		4.56
6.53
8.47 		46.4
44
40 		48
57
58 		2900 7.5 2.3 595 390 105 160 100 405 220 100 535 640 340 340 f165 f125 4-f18 SD41-0,5 20
50-200(I)B 15.2
21.8
28.3 		4.22
6.06
7.86 		40
38
34.5 		45
55
55 		2900 5.5 2.3 595 390 105 160 100 405 220 100 535 640 340 340 f165 f125 4-f18 SD41-0,5 20
50-250 (I) 17.5
25
32.5 		4.86
6.94
9.03 		82
80
76.5 		39
50
52 		2900 15 2.3 695 485 120 180 120 515 270 105 695 740 430 440 f165 f125 4-f18 SD41-0,5 20
50-250(I)A 16.4
23.4
30.5 		4.56
6.5
8.47 		71.5
70
67 		39
50
52 		2900 11 2.3 695 485 120 180 120 515 270 105 695 740 430 440 f165 f125 4-f18 SD41-0,5 20


Turi Q oqimi harakat
m 		Samaradorlik
(%)		 Sinxronizatsiya
Aylanish tezligi
rpm		 Elektr dvigateli
Quvvat
KVt		 majburiy kavitatsiya zahirasi
（m）		 Vertikal yozishni sozlash Gorizontal nasos o'lchami Flanj o'lchami Vibratsiyali izolyatsiya H1
m³/soat L/S H L h B C H h a L1 L L2 B1 D D1 n-d Spetsifikatsiya
50-250(I)B 15
21.6
28 		4.17
6
7.78 		61
60
57.4 		38
49
54 		2900 11 2.3 695 485 120 180 120 515 270 105 695 740 430 440 f165 f125 4-f18 SD41-0,5 20
50-315 (I) 17.5
25
32.5 		4.86
6.94
9.03 		128
125
122 		30
40
44 		2900 30 2.5 865 550 130 180 120 565 290 130 740 930 405 460 f165 f125 4-f18 SD41-0,5 20
50-315(I)A 16.6
23.7
31 		4.61
6.58
8.6 		115
113
110 		30
40
44 		2900 22 2.5 785 550 130 180 120 565 290 130 740 850 405 460 f165 f125 4-f18 SD41-0,5 20
50-315(I)B 15.7
22.5
29.2 		4.36
6.25
8 		103
101
98 		30
39
42 		2900 18.5 2.5 785 550 130 180 120 565 290 130 740 850 405 460 f165 f125 4-f18 SD41-0,5 20
50-315 (I) S 14.4
20.6
26.8 		4
5.72
7.44 		86
85
83 		38
46
40 		2900 15 2.5 705 550 130 180 120 565 290 130 740 770 405 460 f165 f125 4-f18 SD41-0,5 20
65-100 17.5
25
32.5 		4.86
6.94
9.03 		13.7
12.5
10.5 		67
69
69 		2900 1.5 2.5 495 325 95 160 100 380 220 95 455 510 280 310 f165 f125 4-f18 SD41-0,5 20





Hot Tags: IRG ISW ISWB quvur nasosi, Xitoy, ishlab chiqaruvchi, yetkazib beruvchi, zavod, moslashtirilgan, sifat, so'nggi sotuvlar, stokda, brendlar, Idoralar, Taizhou

Tegishli toifa

Intellektual chastota konvertori nasosi

Yuzaki nasos

Bog 'nasosi

Suv osti nasosi

Kanalizatsiya nasosi

Chuqur quduq nasosi

Quyosh nasosi

Sirkulyatsiya pompasi

Quvur nasosi

Tijorat santrifugasi

Ikki tomonlama assimilyatsiya pompasi

Yakuniy assimilyatsiya pompasi

Hovuz va kurort pompasi

O'tkazish pompasi

Dvigatel pompasi

Favqulodda treyler drenaj nasosi va dizel dvigatel nasosi

So'rov yuborish

Iltimos, so'rovingizni quyidagi shaklda berishingiz mumkin. Sizga 24 soat ichida javob beramiz.

Tegishli mahsulotlar

X
We use cookies to offer you a better browsing experience, analyze site traffic and personalize content. By using this site, you agree to our use of cookies. Privacy Policy
Reject Accept
